Description

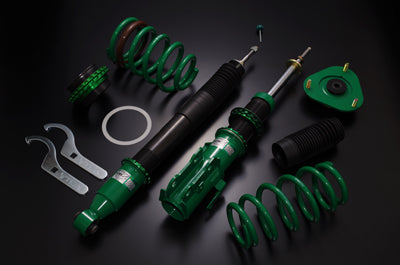

The TEIN FLEX Z suspension package for Toyota Prius Prime applications detailed below is intended for street use and adjustable ride height. Its spring, damper and mounting configuration should be selected as a complete application rather than by vehicle name alone.
Design and adjustment
Twin-tube dampers use 16-level adjustment to change compression and rebound together. Full-length height adjustment separates the primary ride-height setting from spring preload, making it easier to establish a consistent starting setup.
FLEX Z uses sealed damper bodies. Replacement shock bodies are the service route; this series is not conventionally disassembled for overhaul.
Product identification
| Item | Detail |
|---|---|
| Manufacturer part number | VSTD2-C1AS3 |
| Series | FLEX Z |
Application-specific specifications
| Application | Front spring rate | Rear spring rate | Front reference height change | Rear reference height change |
|---|---|---|---|---|
| Toyota Prius Prime 2018–2022 (ZVW52), PHEV, 1800 cc, FWD | 4 kgf/mm | 5 kgf/mm | -35 mm (-1.4 in) | -30 mm (-1.2 in) |
Height figures are changes relative to the original suspension: negative values indicate lowering and positive values indicate a raised height. Inch figures are rounded conversions. Actual installed height depends on vehicle condition, equipment and setup.
| Application | Front upper mount | Rear upper mount |
|---|---|---|
| Toyota Prius Prime 2018–2022 (ZVW52), PHEV, 1800 cc, FWD | Reinforced-rubber mount | Reinforced-rubber mount |
| Application | Recommended front height-change range | Recommended rear height-change range |
|---|---|---|
| Toyota Prius Prime 2018–2022 (ZVW52), PHEV, 1800 cc, FWD | -45 to -25 mm | -40 to -20 mm |
Vehicle application
| Years / production dates | Make | Model | Chassis | Trim / restriction | Engine displacement | Drivetrain | Market |
|---|---|---|---|---|---|---|---|
| 2018–2022 | TOYOTA | PRIUS PRIME | ZVW52 | PHEV | 1800 cc | FWD | USA |
Match the chassis, market and equipment above. Dates shown for non-US markets can be production dates rather than US model years; an open-ended application is not confirmation for a later redesigned chassis.
Included configuration
The application record identifies springs as included with this suspension kit. Upper-mount configuration is shown separately above; components marked as original are reused from the vehicle.
Installation and setup
Set the suspension within its application-specific recommended height range, check clearance through steering and suspension travel, and align the vehicle after fitting. Change damping settings progressively where adjustment is available; the firmest setting is not automatically the most suitable.
Application-specific installation notes
- Toyota Prius Prime 2018–2022 (ZVW52): Front: shock absorber needs to be detached from vehicle, when adjusting damping force. Ft/Rear: use of EDFC series is recommended, as it's difficult to adjust damping force by hand.
Ordering information
- Special-order item. Confirm current availability and lead time before placing an order.
- Orders for this item cannot be cancelled or returned.
