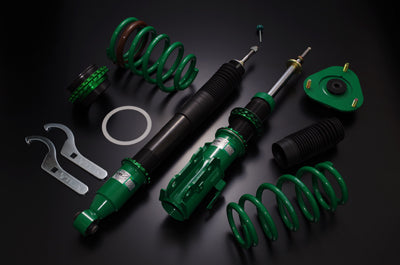

TEIN FLEX Z Coilovers – 2016+ Toyota Prius

Save $68
TeinSKU: TEINVSTD0-C1AS3

Price:
$1,292 $1,360

Description

The TEIN FLEX Z suspension package for Toyota Prius applications detailed below is intended for street use and adjustable ride height. Its spring, damper and mounting configuration should be selected as a complete application rather than by vehicle name alone.

Design and adjustment

Twin-tube dampers use 16-level adjustment to change compression and rebound together. Full-length height adjustment separates the primary ride-height setting from spring preload, making it easier to establish a consistent starting setup.

FLEX Z uses sealed damper bodies. Replacement shock bodies are the service route; this series is not conventionally disassembled for overhaul.

Product identification

Item Detail
Manufacturer part number VSTD0-C1AS3
Series FLEX Z

Application-specific specifications

Application Front spring rate Rear spring rate Front reference height change Rear reference height change
Toyota Prius 2015.12–2018.11 (ZVW50), S, S TOURING, 1800 cc, FWD 4 kgf/mm 4.7 kgf/mm -30 mm (-1.2 in) -30 mm (-1.2 in)
Toyota Prius 2015.12–2018.11 (ZVW51), A PREMIUM, A PREMIUM TOURING, A, A TOURING, 1800 cc, FWD 4 kgf/mm 4.7 kgf/mm -30 mm (-1.2 in) -30 mm (-1.2 in)
Toyota Prius 2018.12–2022.12 (ZVW51), A PREMIUM, A, S, TOURING SELECTION A, A PREMIUM, S, 1800 cc, FWD 4 kgf/mm 4.7 kgf/mm -30 mm (-1.2 in) -30 mm (-1.2 in)

Height figures are changes relative to the original suspension: negative values indicate lowering and positive values indicate a raised height. Inch figures are rounded conversions. Actual installed height depends on vehicle condition, equipment and setup.

Application Front upper mount Rear upper mount
Toyota Prius 2015.12–2018.11 (ZVW50), S, S TOURING, 1800 cc, FWD Reinforced-rubber mount Reinforced-rubber mount
Toyota Prius 2015.12–2018.11 (ZVW51), A PREMIUM, A PREMIUM TOURING, A, A TOURING, 1800 cc, FWD Reinforced-rubber mount Reinforced-rubber mount
Toyota Prius 2018.12–2022.12 (ZVW51), A PREMIUM, A, S, TOURING SELECTION A, A PREMIUM, S, 1800 cc, FWD Reinforced-rubber mount Reinforced-rubber mount
Application Recommended front height-change range Recommended rear height-change range
Toyota Prius 2015.12–2018.11 (ZVW50), S, S TOURING, 1800 cc, FWD -40 to -20 mm -40 to -20 mm
Toyota Prius 2015.12–2018.11 (ZVW51), A PREMIUM, A PREMIUM TOURING, A, A TOURING, 1800 cc, FWD -40 to -20 mm -40 to -20 mm
Toyota Prius 2018.12–2022.12 (ZVW51), A PREMIUM, A, S, TOURING SELECTION A, A PREMIUM, S, 1800 cc, FWD -40 to -20 mm -40 to -20 mm

Vehicle application

Years / production dates Make Model Chassis Trim / restriction Engine displacement Drivetrain Market
2015.12–2018.11 TOYOTA PRIUS ZVW50 S, S TOURING 1800 cc FWD JPN
2015.12–2018.11 TOYOTA PRIUS ZVW51 A PREMIUM, A PREMIUM TOURING, A, A TOURING 1800 cc FWD JPN
2018.12–2022.12 TOYOTA PRIUS ZVW51 A PREMIUM, A, S, TOURING SELECTION A, A PREMIUM, S 1800 cc FWD JPN

Match the chassis, market and equipment above. Dates shown for non-US markets can be production dates rather than US model years; an open-ended application is not confirmation for a later redesigned chassis.

Included configuration

The application record identifies springs as included with this suspension kit. Upper-mount configuration is shown separately above; components marked as original are reused from the vehicle.

Installation and setup

Set the suspension within its application-specific recommended height range, check clearance through steering and suspension travel, and align the vehicle after fitting. Change damping settings progressively where adjustment is available; the firmest setting is not automatically the most suitable.

Application-specific installation notes

  • Toyota Prius 2015.12–2018.11 (ZVW50): Front: shock absorber needs to be detached from vehicle, when adjusting damping force. Ft/Rear: use of EDFC series is recommended, as it's difficult to adjust damping force by hand.
  • Toyota Prius 2015.12–2018.11 (ZVW51): Not tested on e models. Front: shock absorber needs to be detached from vehicle, when adjusting damping force. Ft/Rear: use of EDFC series is recommended, as it's difficult to adjust damping force by hand.
  • Toyota Prius 2018.12–2022.12 (ZVW51): Not tested on e models. Front: shock absorber needs to be detached from vehicle, when adjusting damping force. Ft/Rear: use of EDFC series is recommended, as it's difficult to adjust damping force by hand.
