TEIN FLEX Z Coilovers – 2010–2014 Subaru Legacy (BM9/BR9)

Save $60
TeinSKU: TEINVSSB6-C1SA3

Price:
$1,140 $1,200

Description

The TEIN FLEX Z suspension package for Subaru Legacy applications detailed below is intended for street use and adjustable ride height. Its spring, damper and mounting configuration should be selected as a complete application rather than by vehicle name alone.

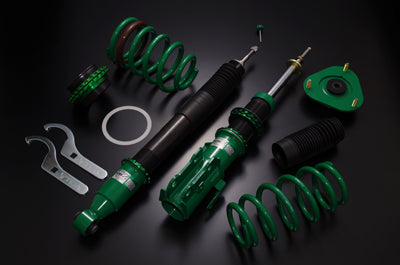

Representative image: Photos illustrate the product series or component type. Actual product appearance, dimensions, mounting configuration, and included hardware may vary by application. Refer to the listed part number, specifications, and included components for the product supplied.

Design and adjustment

Twin-tube dampers use 16-level adjustment to change compression and rebound together. Full-length height adjustment separates the primary ride-height setting from spring preload, making it easier to establish a consistent starting setup.

FLEX Z uses sealed damper bodies. Replacement shock bodies are the service route; this series is not conventionally disassembled for overhaul.

Product identification

Item Detail
Manufacturer part number VSSB6-C1SA3
Series FLEX Z

Application-specific specifications

Application Front spring rate Rear spring rate Front reference height change Rear reference height change
Subaru Legacy 2010–2014 (BM9), 2500 cc, 4WD/AWD 7 kgf/mm 6 kgf/mm -50 mm (-2.0 in) -45 mm (-1.8 in)

Height figures are changes relative to the original suspension: negative values indicate lowering and positive values indicate a raised height. Inch figures are rounded conversions. Actual installed height depends on vehicle condition, equipment and setup.

Application Front upper mount Rear upper mount
Subaru Legacy 2010–2014 (BM9), 2500 cc, 4WD/AWD Reinforced-rubber mount Reinforced-rubber mount
Application Recommended front height-change range Recommended rear height-change range
Subaru Legacy 2010–2014 (BM9), 2500 cc, 4WD/AWD -60 to -40 mm -55 to -35 mm

Vehicle application

Years / production dates Make Model Chassis Trim / restriction Engine displacement Drivetrain Market
2010–2014 SUBARU LEGACY BM9 See installation notes 2500 cc 4WD/AWD USA

Match the chassis, market and equipment above. Dates shown for non-US markets can be production dates rather than US model years; an open-ended application is not confirmation for a later redesigned chassis.

Included configuration

The application record identifies springs as included with this suspension kit. Upper-mount configuration is shown separately above; components marked as original are reused from the vehicle.

Installation and setup

Set the suspension within its application-specific recommended height range, check clearance through steering and suspension travel, and align the vehicle after fitting. Change damping settings progressively where adjustment is available; the firmest setting is not automatically the most suitable.
