Description

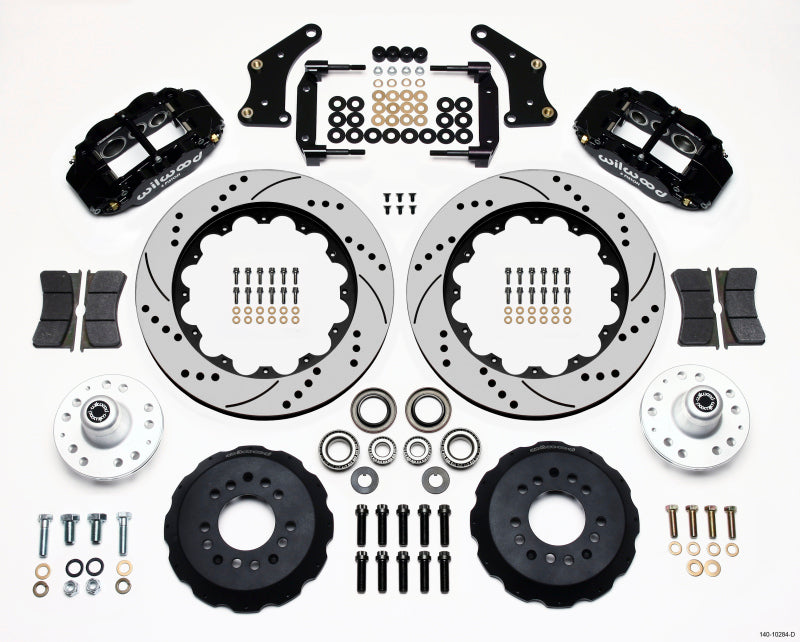

The Wilwood Narrow Superlite 6R Front Brake Kit (part number 140-10284-D) is configured with Black Calipers. Application: 1957-1970 GM.
The radial-mount caliper arrangement uses a dedicated bracket to establish caliper position over the rotor. Bracket geometry and rotor offset are therefore part of the fitment specification. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: Black Calipers.
- Application: 1957-1970 GM.
- Configuration: Large Drop Spindle / 14.00 in Drilled & Slotted Rotors / Hub Kit.
- Caliper series: Forged Narrow Superlite 6R.
- Pistons per caliper: 6.
- Piston material: Stainless.
- Caliper mounting: Radial.
- Pad shape: 7416.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in.
Cataloged vehicle applications
- 1958-1966 Chevrolet Bel Air — Base
- 1970 Chevrolet Biscayne — Base
- 1970 Chevrolet Brookwood — Base
- 1967-1970 Chevrolet Caprice — Base
- 1970 Chevrolet Estate — Base
- 1967-1970 Chevrolet Impala — Base
- 1967 Chevrolet Impala — SS
- 1970 Chevrolet Kingswood — Base
- 1970 Chevrolet Kingswood — Estate
- 1970 Chevrolet Townsman — Base
Selection and installation: Wilwood lists a potential minimum wheel diameter of 18 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
