Description

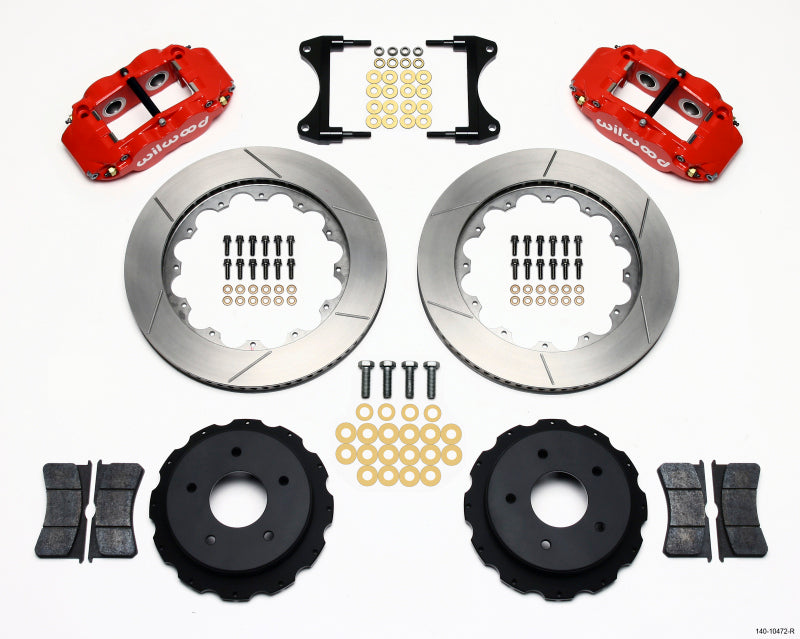

The Wilwood Narrow Superlite 4R Rear Brake Kit (part number 140-10472-R) is configured with 14.00 in Slotted Rotors - Red Calipers. Application: 1965-1982 Chevrolet Corvette (C2/C3).
The radial-mount caliper arrangement uses a dedicated bracket to establish caliper position over the rotor. Bracket geometry and rotor offset are therefore part of the fitment specification. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 14.00 in Slotted Rotors - Red Calipers.
- Application: 1965-1982 Chevrolet Corvette (C2/C3).
- Caliper series: Forged Narrow Superlite 4R.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Radial.
- Pad shape: 7416.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.38 / 1.38 in.
Cataloged vehicle applications
- 1970,1977-1982 Chevrolet Corvette — Base
- 1982 Chevrolet Corvette — Collector's Edition
- 1978 Chevrolet Corvette — Indianapolis 500 Pace Car
- 1978 Chevrolet Corvette — Silver Anniversary Edition
- 1975-1976 Chevrolet Corvette — Stingray
Selection and installation: Wilwood lists a potential minimum wheel diameter of 18 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
