Description

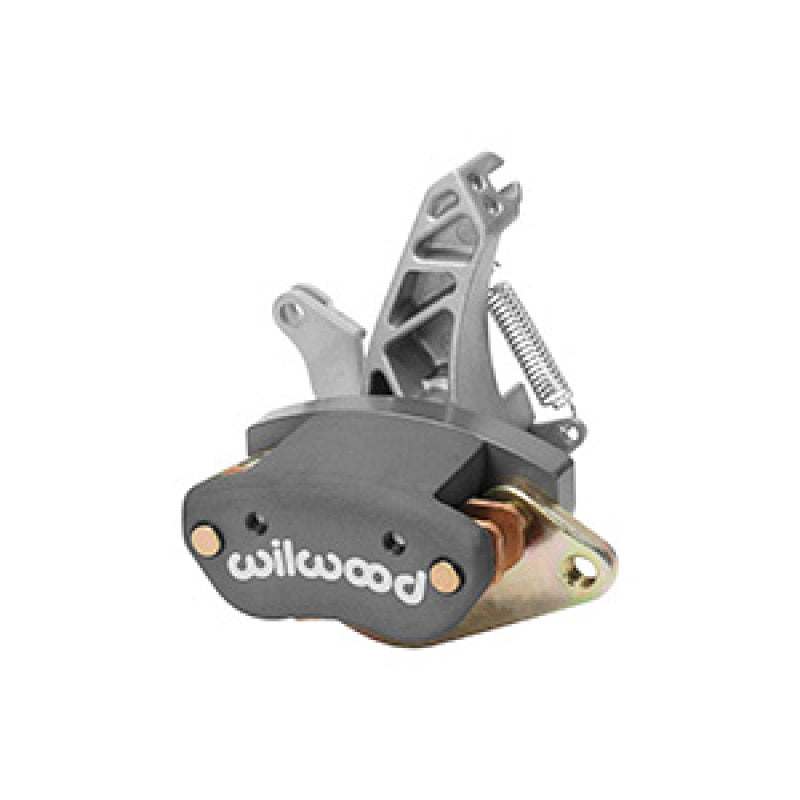

The Wilwood MC5 Mechanical Left Brake Caliper (part number 120-16362) provides mechanically actuated braking for its specified mounting arrangement. It uses floating mounting with a listed nominal rotor thickness of 0.25 in.
Mechanical actuation and the mounting geometry must match the intended brake installation. Check the operating linkage and rotor alignment as part of the assembly specification.
Technical details
- Piston count: 1.
- Piston material: Aluminum.
- Body material: Cast Aluminium.
- Finish: Type III Anodize.
- Mounting type: Floating.
- Mounting side: Left Hand.
- Mounting centers: 4.75 in.
- Nominal rotor thickness: 0.25 in.
- Rotor thickness range: 0.15–0.25 in.
- Rotor diameter range: 11.00–12.88 in.
- Brake pad shape: 6407.
- Dust boots: Fitted.
Selection and installation: Match the caliper part number, rotor specification, and mounting arrangement before ordering.
