Description

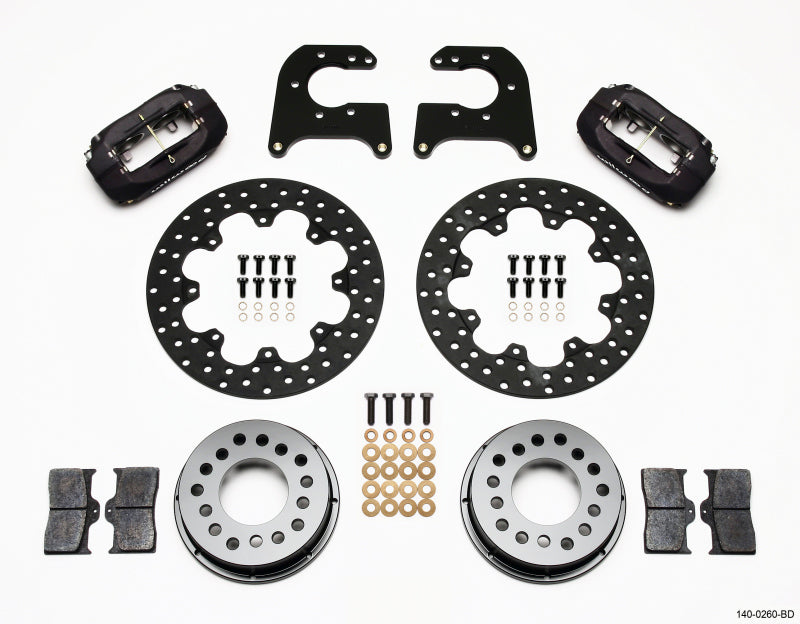

The Wilwood Forged Dynalite Rear Brake Kit (part number 140-0260-BD) is configured with Drilled Rotors. Application: Drag Mopar-Dana 2.36 in Offset.
The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: Drilled Rotors.
- Application: Drag Mopar-Dana 2.36 in Offset.
- Caliper series: Forged Dynalite Internal.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7112.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.75 / 1.75 in.
- Caliper finish: Type III Anodize.
- Rotor material: Steel.
- Rotor surface finish: Black Oxide.
- Rotor dimensions: 11.44 in diameter × 0.35 in thickness.
- Caliper mounting arrangement: Lug.
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
