Description

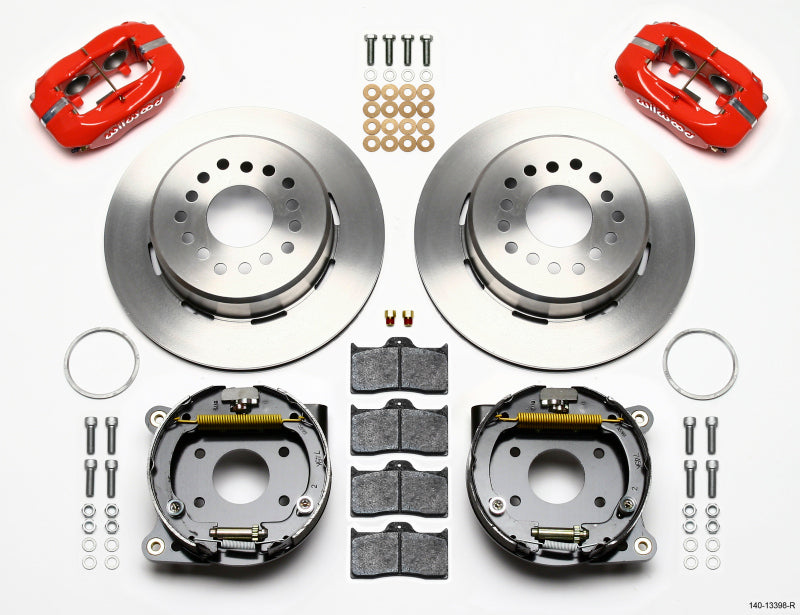

The Wilwood Forged Dynalite Brake Kit (part number 140-13398-R) is configured with Red Calipers. Application: 1971-1974 Park.
The internal shoe-style parking brake provides a dedicated mechanical parking function within the rear rotor assembly. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: Red Calipers.
- Application: 1971-1974 Park.
- Configuration: Amc 2.60 in Offset / Pro Street / Parking Brake.
- Caliper series: Forged Dynalite Internal.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7112.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.38 / 1.38 in.
- Caliper finish: Red Powder Coat.
- Rotor material: Iron.
- Rotor surface finish: Plain.
- Rotor dimensions: 12.19 in diameter × 0.81 in thickness.
- Caliper mounting arrangement: Lug.
Cataloged vehicle applications
- 1971-1974 American Motors Javelin — AMX
- 1971-1972,1974 American Motors Javelin — Base
- 1971-1972 American Motors Javelin — SST
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
