Description

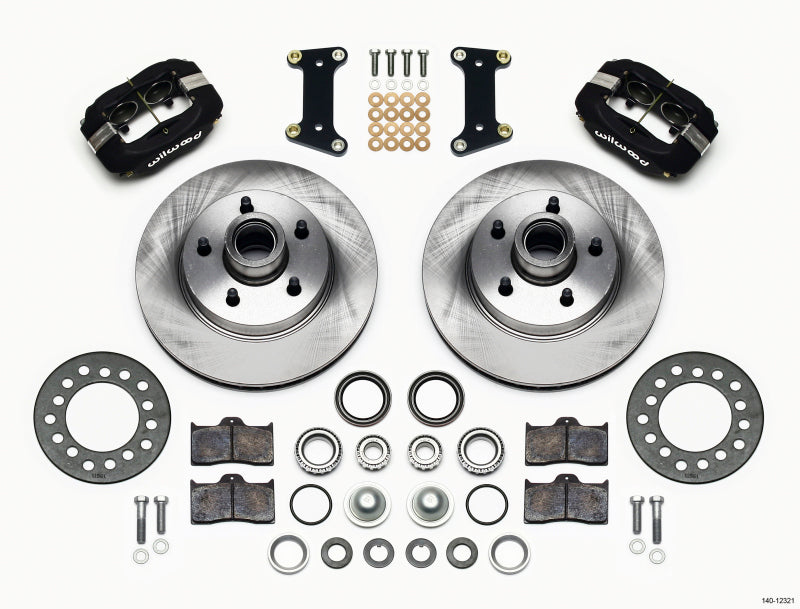

The Wilwood Forged Dynalite Front Brake Kit (part number 140-12321) is configured with 11.88 in Rotors. Application: 1941-1956 Buick.
The supplied application information permits use with either manual or power-assisted master-cylinder arrangements. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 11.88 in Rotors.
- Application: 1941-1956 Buick.
- Configuration: 1 Pc & / Hub Kit.
- Caliper series: Forged Dynalite.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7112.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.75 / 1.75 in.
- Caliper finish: Type III Anodize.
- Rotor material: Iron.
- Rotor surface finish: Plain.
- Rotor dimensions: 11.88 in diameter × 1.29 in thickness.
- Caliper mounting arrangement: Lug.
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
