Description

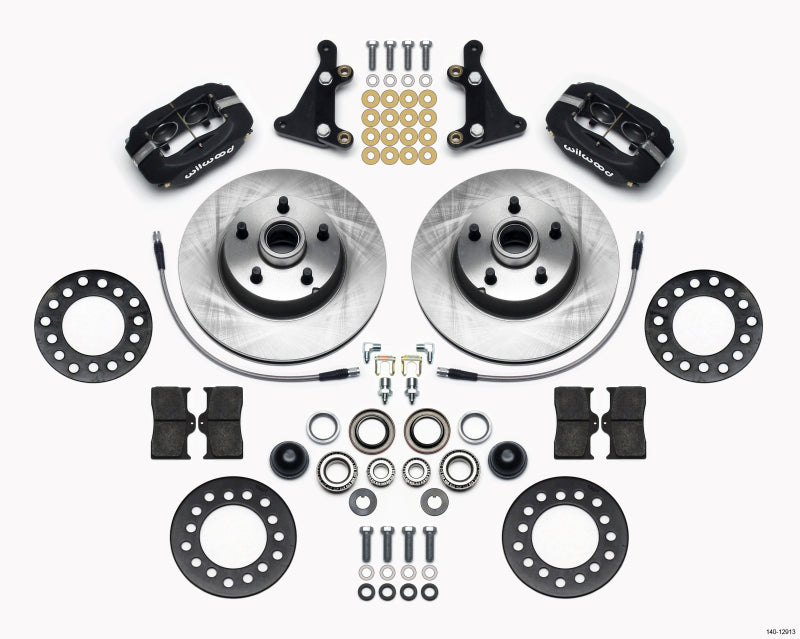

The Wilwood Forged Dynalite Front Brake Kit (part number 140-12913) is configured with 11.28 in Rotors. Application: 1949-1953 Ford.
The supplied application information permits use with either manual or power-assisted master-cylinder arrangements. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 11.28 in Rotors.
- Application: 1949-1953 Ford.
- Configuration: 1 Pc & / Hub Kit.
- Caliper series: Forged Dynalite Internal.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7112.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.75 / 1.75 in.
- Caliper finish: Black Powder Coat.
- Rotor material: Iron.
- Rotor surface finish: Plain.
- Rotor dimensions: 11.29 in diameter × 0.94 in thickness.
- Caliper mounting arrangement: Lug.
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
