Description

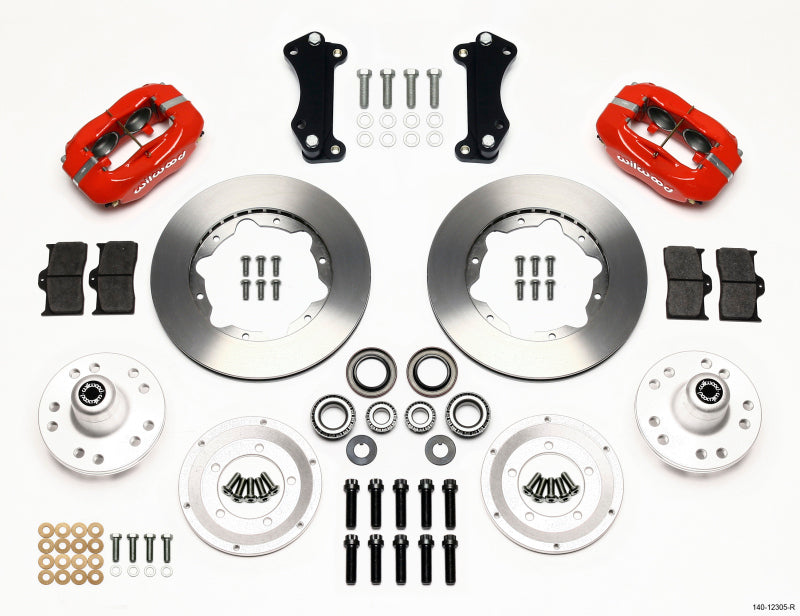

The Wilwood Forged Dynalite Front Brake Kit (part number 140-12305-R) is configured with Red Calipers. Application: Heidts Tri -5 2 in Drop Spindle.
The supplied application information permits use with either manual or power-assisted master-cylinder arrangements. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: Red Calipers.
- Application: Heidts Tri -5 2 in Drop Spindle.
- Configuration: 11.00 in Rotors.
- Caliper series: Forged Dynalite Internal.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7112.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.75 / 1.75 in.
Cataloged vehicle applications
- 1955-1957 Chevrolet Bel Air — Base
- 1955-1956 Chevrolet Bel Air — Beauville
Selection and installation: Wilwood lists a potential minimum wheel diameter of 14 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
