Description

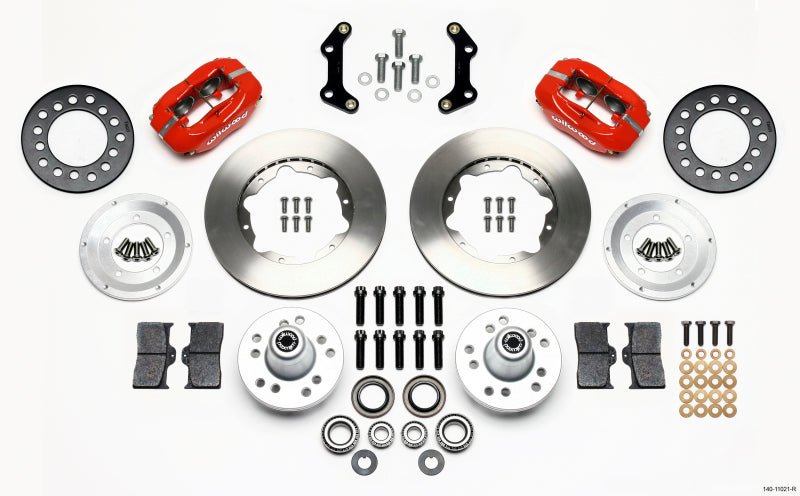

The Wilwood Forged Dynalite Front Brake Kit (part number 140-11021-R) is configured with 11.00 in Undrilled Rotors - Red Calipers. Application: 1970-1972 CDP B & E Body-Disc.
The supplied application information permits use with either manual or power-assisted master-cylinder arrangements. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 11.00 in Undrilled Rotors - Red Calipers.
- Application: 1970-1972 CDP B & E Body-Disc.
- Caliper series: Forged Dynalite Internal.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7112.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.75 / 1.75 in.
Selection and installation: Wilwood lists a potential minimum wheel diameter of 14 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
