Description

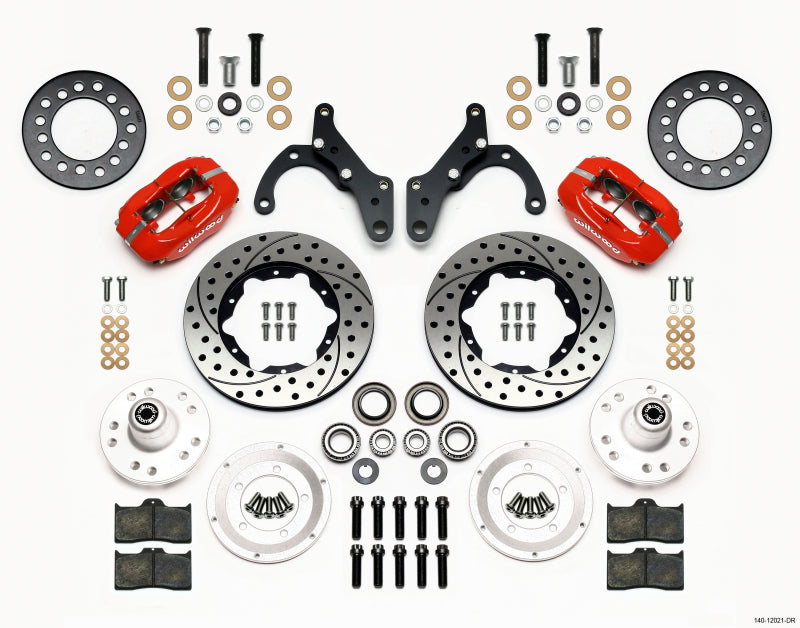

The Wilwood Forged Dynalite Front Brake Kit (part number 140-12021-DR) is configured with Red Powder Coat Calipers. Application: 1965-1968 Chevrolet Impala.
The supplied application information permits use with either manual or power-assisted master-cylinder arrangements. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: Red Powder Coat Calipers.
- Application: 1965-1968 Chevrolet Impala.
- Configuration: Drum Spindle / 11.00 in Drilled & Slotted Rotors.
- Caliper series: Forged Dynalite Internal.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7112.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.75 / 1.75 in.
- Caliper finish: Red Powder Coat.
- Rotor material: Iron.
- Rotor surface finish: Black Electro Coat.
- Rotor dimensions: 11.00 in diameter × 0.81 in thickness.
- Caliper mounting arrangement: Lug.
Cataloged vehicle applications
- 1965-1966,1968 Chevrolet Bel Air — Base
- 1967-1968 Chevrolet Caprice — Base
- 1967-1968 Chevrolet Impala — Base
- 1967 Chevrolet Impala — SS
Selection and installation: Wilwood lists a potential minimum wheel diameter of 14 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
