Description

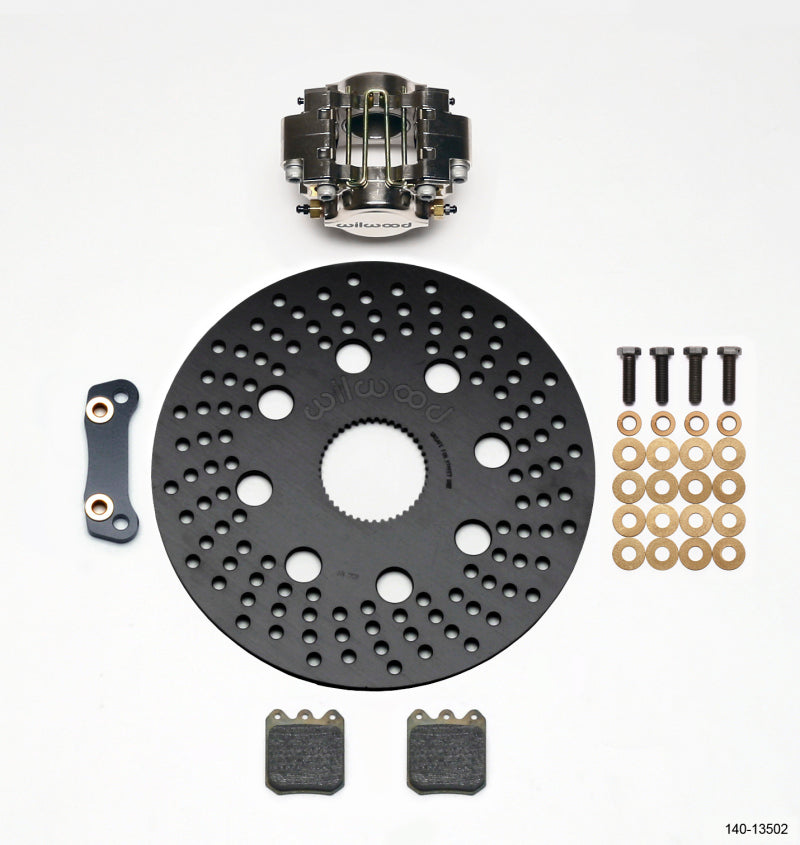

The Wilwood Dynapro Single LW Rear Brake Kit (part number 140-13502) is configured with 10.20 in Drilled Rotors.
The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 10.20 in Drilled Rotors.
- Configuration: Right.
- Configuration: Sprint Aluminum.
- Caliper series: Dynapro Single.
- Pistons per caliper: 2.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 6812.
- Pad compound: Purple.
- Listed piston bore sizes: 1.75 in.
- Caliper finish: Type III Anodize.
- Rotor material: Aluminum.
- Rotor surface finish: Type III Ano.
- Rotor dimensions: 10.20 in diameter × 0.31 in thickness.
- Caliper mounting arrangement: Lug.
Selection and installation: Check wheel-to-caliper clearance using the installation dimensions for this kit. Wheel diameter alone does not confirm spoke or barrel clearance.
