Description

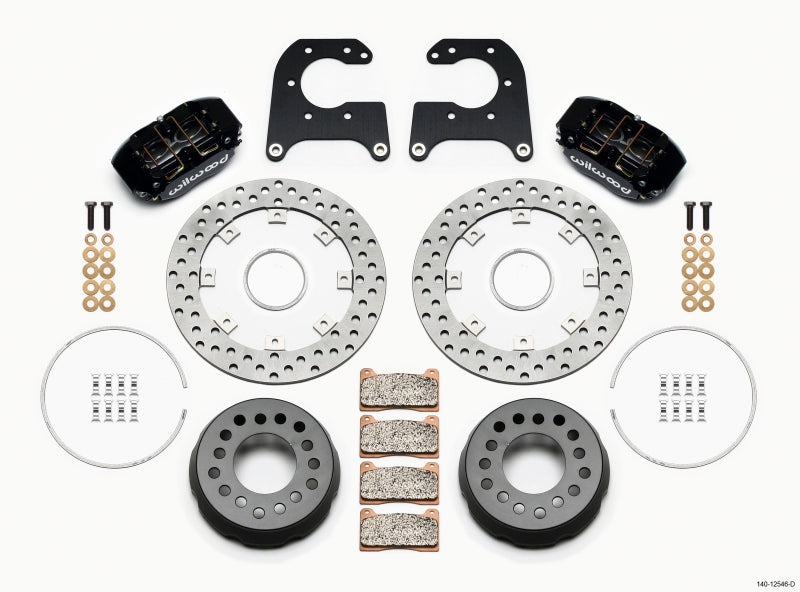

The Wilwood Dynapro Rear Brake Kit (part number 140-12546-D) combines the brake components specified below for its designated application. Application: Lug Mount Single Dynamic Sa Big Ford New Style.
The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Application: Lug Mount Single Dynamic Sa Big Ford New Style.
- Configuration: Drilled Rotors / 2.50 in Offset.
- Caliper series: Dynapro Lug Mount.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7812.
- Pad compound: BP-28.
- Listed piston bore sizes: 1.75 / 1.75 in.
- Caliper finish: Type III Anodize.
- Rotor material: Super Alloy.
- Rotor surface finish: Plain.
- Rotor dimensions: 11.44 in diameter × 0.35 in thickness.
- Caliper mounting arrangement: Lug.
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
