Description

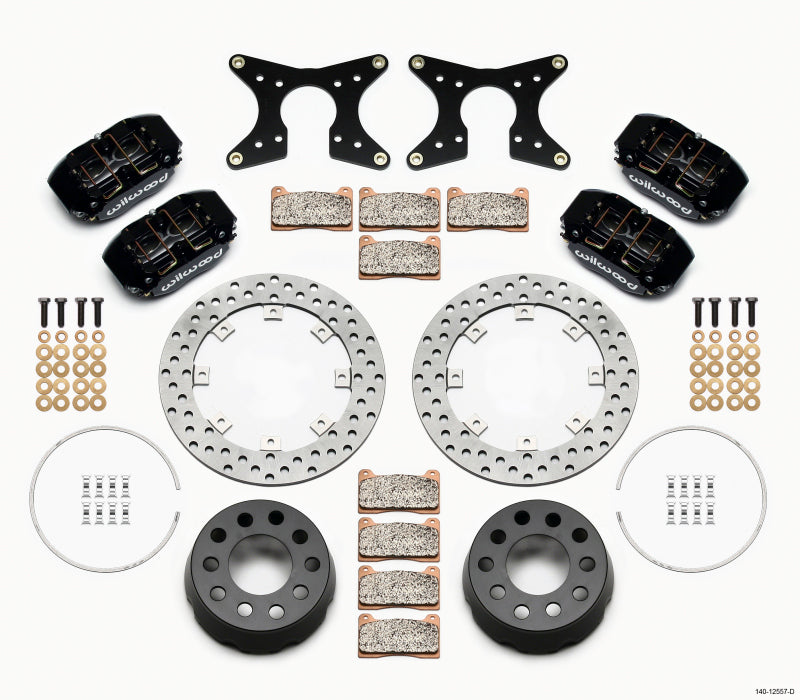

The Wilwood Dynapro Rear Brake Kit (part number 140-12557-D) is configured with Drilled Rotors.
The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: Drilled Rotors.
- Configuration: Lug Mount Dual Dynamic Sa M-with Lamb Ends 0.690 in Studs.
- Caliper series: Dynapro Lug Mount.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7812.
- Pad compound: BP-28.
- Listed piston bore sizes: 1.38 / 1.38 in.
- Caliper finish: Type III Anodize.
- Rotor material: Super Alloy.
- Rotor surface finish: Plain.
- Rotor dimensions: 11.44 in diameter × 0.35 in thickness.
- Caliper mounting arrangement: Lug.
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
