Description

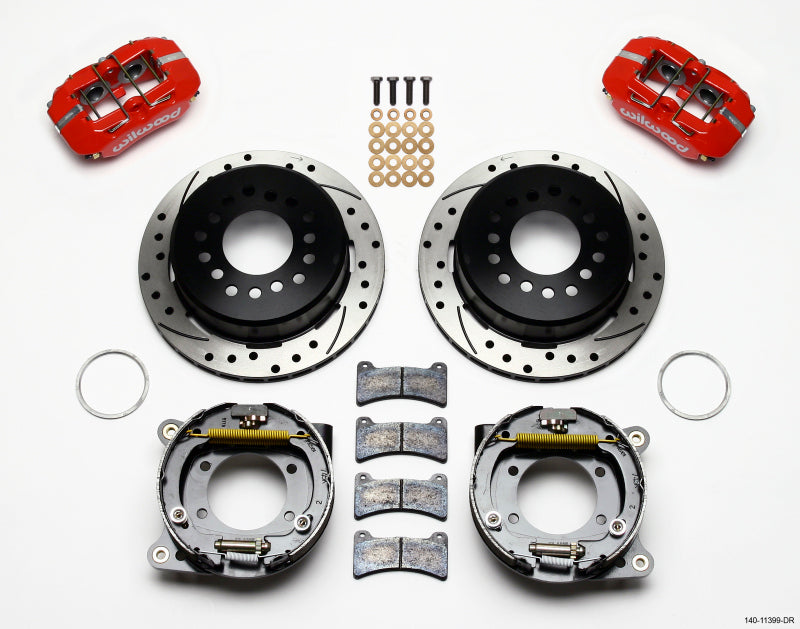

The Wilwood Dynapro Low-Profile Brake Kit (part number 140-11399-DR) is configured with 11.00 in Drilled Rotors - Red Calipers. Application: 1993-1997 Parking.
The internal shoe-style parking brake provides a dedicated mechanical parking function within the rear rotor assembly. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 11.00 in Drilled Rotors - Red Calipers.
- Application: 1993-1997 Parking.
- Configuration: Chevrolet Camaro/Firebird 2.75 in Offset / Parking Brake.
- Caliper series: Forged Dynapro Low Profile.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 4812.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.38 / 1.38 in.
Cataloged vehicle applications
- 1993-1997 Chevrolet Camaro — Base
- 1993 Chevrolet Camaro — Indianapolis 500 Pace Car
- 1996-1997 Chevrolet Camaro — RS
- 1993-1997 Chevrolet Camaro — Z28
- 1993-1997 Pontiac Firebird — Base
- 1993-1997 Pontiac Firebird — Formula
- 1993-1997 Pontiac Firebird — Trans Am
- 1994 Pontiac Firebird — Trans Am GT
Selection and installation: Wilwood lists a potential minimum wheel diameter of 14 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
