Description

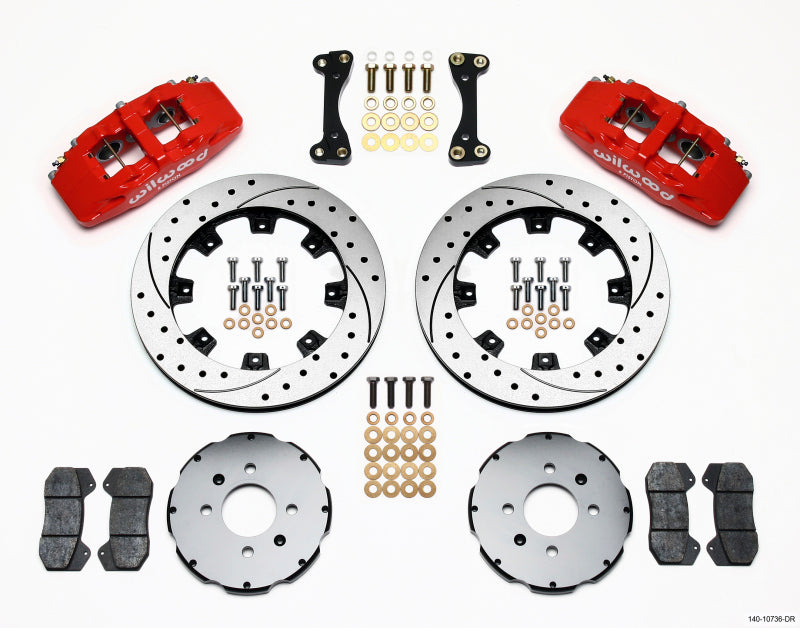

The Wilwood Dynapro 6 Front Brake Kit (part number 140-10736-DR) is configured with 12.19 in Drilled & Slotted Rotors - Red Powder Coat Calipers. Application: 1990-1999 Honda Civic.
The application-specific design accounts for original-equipment master-cylinder output and ABS operation where fitted. Retain the specified vehicle and brake configuration when evaluating compatibility. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 12.19 in Drilled & Slotted Rotors - Red Powder Coat Calipers.
- Application: 1990-1999 Honda Civic.
- Configuration: with 240 mm Disc / Hat Kit.
- Caliper series: Dynapro 6.
- Pistons per caliper: 6.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 6712.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.38 / 1.00 / 1.00 in.
- Caliper finish: Red Powder Coat.
- Rotor material: Iron.
- Rotor surface finish: Black Electro Coat.
- Rotor dimensions: 12.19 in diameter × 0.81 in thickness.
- Caliper mounting arrangement: Lug.
Cataloged vehicle applications
- 1988-1991 Honda Civic — Base
- 1992-1995,1998-2000 Honda Civic — CX
- 1988-2000 Honda Civic — DX
- 1990-1991,1993-2000 Honda Civic — EX
- 1998-2000 Honda Civic — GX
- 1996-2000 Honda Civic — HX
- 1988-2000 Honda Civic — LX
- 1989-1991 Honda Civic — RT 4WD
- 1989-1995 Honda Civic — Si
- 1999 Honda Civic — Value Package
- 1992-1995 Honda Civic — VX
- 1989 Honda Civic — Wagovan
- 1993-1997 Honda Civic del Sol — S
- 1993,1995-1997 Honda Civic del Sol — Si
- 1995-1997 Honda Civic del Sol — VTEC
- 1989-1991 Honda CRX — Base
- 1988 Honda CRX — DX
- 1988-1991 Honda CRX — HF
- 1988-1991 Honda CRX — Si
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
