Description

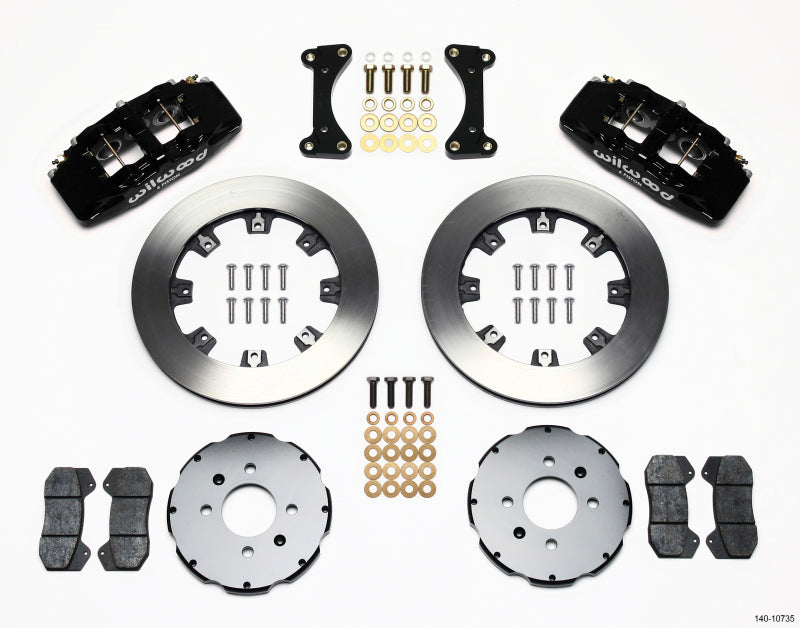

The Wilwood Dynapro 6 Front Brake Kit (part number 140-10735) is configured with 12.19 in Undrilled Rotors - Black Calipers. Application: 1994-2001 Honda.
The application-specific design accounts for original-equipment master-cylinder output and ABS operation where fitted. Retain the specified vehicle and brake configuration when evaluating compatibility. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 12.19 in Undrilled Rotors - Black Calipers.
- Application: 1994-2001 Honda.
- Configuration: Acura with 262mm Disc / Hat Kit.
- Caliper series: Dynapro 6.
- Pistons per caliper: 6.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 6712.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.38 / 1.00 / 1.00 in.
Cataloged vehicle applications
- 1990-1993,1997-2001 Acura Integra — GS
- 1992-2001 Acura Integra — GS-R
- 1990-2001 Acura Integra — LS
- 1990-1998 Acura Integra — RS
- 1995-1996 Acura Integra — Special Edition
- 1997-1998,2000-2001 Acura Integra — Type R
- 1996-1997 Honda Civic — CX
- 1993-1997,2001-2005 Honda Civic — DX
- 1990-2005 Honda Civic — EX
- 2005 Honda Civic — EX Special Edition
- 2001-2005 Honda Civic — GX
- 2001-2005 Honda Civic — HX
- 2003-2005 Honda Civic — Hybrid
- 1994-1996,2001-2005 Honda Civic — LX
- 2005 Honda Civic — LX Special Edition
- 1994-1995,1999-2000,2002-2003 Honda Civic — Si
- 2004-2005 Honda Civic — Value Package
- 1994-1997 Honda Civic del Sol — Si
- 1994-1997 Honda Civic del Sol — VTEC
- 2007-2013 Honda Fit — Base
- 2007-2013 Honda Fit — Sport
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
