Description

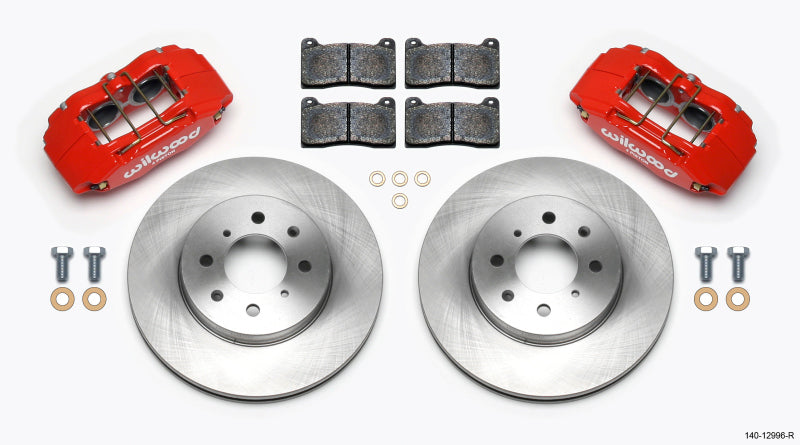

The Wilwood Forged DPHA Front Caliper & Rotor Kit (part number 140-12996-R) is configured with 10.32 in Undrilled Rotors - Red Calipers.
The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 10.32 in Undrilled Rotors - Red Calipers.
- Application: Honda / Acura.
- Configuration: 262 mm OE Rotor Application.
- Caliper series: Forged DPHA.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7812.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.62 / 1.62 in.
Cataloged vehicle applications
- 1990-1993,1997-2001 Acura Integra — GS
- 1992-2001 Acura Integra — GS-R
- 1990-2001 Acura Integra — LS
- 1990-1998 Acura Integra — RS
- 1995-1996 Acura Integra — Special Edition
- 1997-1998,2000-2001 Acura Integra — Type R
- 1996-1997 Honda Civic — CX
- 1993-1997,2001-2005 Honda Civic — DX
- 1990-2005 Honda Civic — EX
- 2005 Honda Civic — EX Special Edition
- 2001-2005 Honda Civic — GX
- 2001-2005 Honda Civic — HX
- 2003-2005 Honda Civic — Hybrid
- 1994-1996,2001-2005 Honda Civic — LX
- 2005 Honda Civic — LX Special Edition
- 1994-1995,1999-2000,2002-2003 Honda Civic — Si
- 2004-2005 Honda Civic — Value Package
- 2007-2013 Honda Fit — Base
- 2007-2013 Honda Fit — Sport
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
