Description

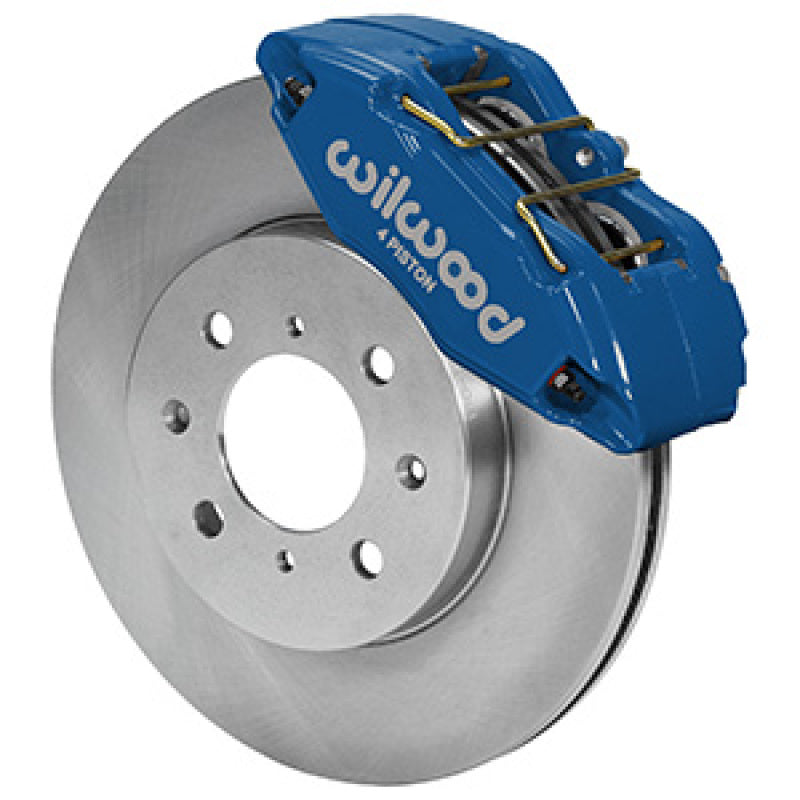

The Wilwood Forged DPHA Front Caliper & Rotor Kit (part number 140-12996-CB) is configured with 10.32 in Undrilled Rotors - Comp Blue Calipers.
The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 10.32 in Undrilled Rotors - Comp Blue Calipers.
- Application: Honda / Acura.
- Configuration: 262 mm OE Rotor Application / Competition.
- Caliper series: Forged DPHA.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Lug.
- Pad shape: 7812.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.62 / 1.62 in.
Selection and installation: Wilwood lists a potential minimum wheel diameter of 15 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
