Description

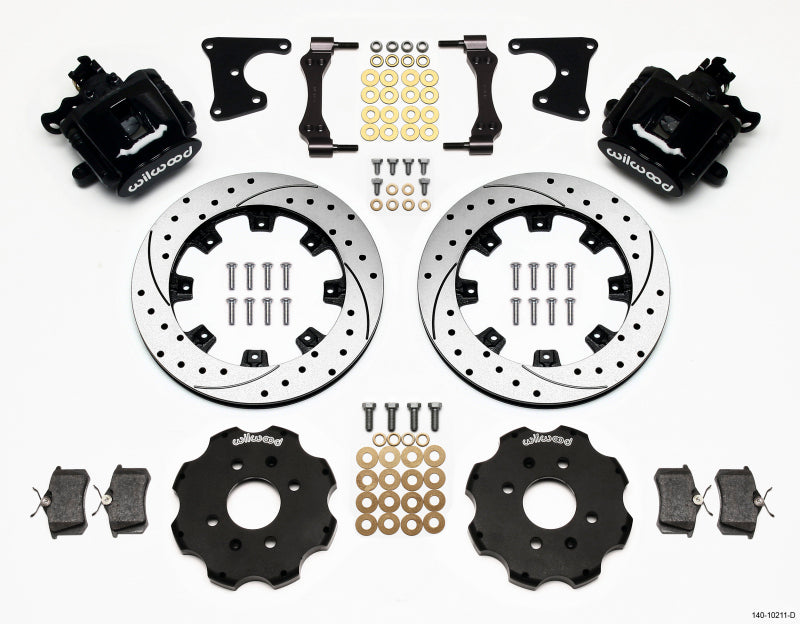

The Wilwood Combination Parking Brake Rear Brake Kit (part number 140-10211-D) is configured with 12.19 in Drilled Rotors. Application: 1988-1995 Honda Civic / Acura Integra.
The radial-mount caliper arrangement uses a dedicated bracket to establish caliper position over the rotor. Bracket geometry and rotor offset are therefore part of the fitment specification. The internal shoe-style parking brake provides a dedicated mechanical parking function within the rear rotor assembly. The combination caliper uses hydraulic actuation for service braking and a mechanical mechanism for the parking brake. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 12.19 in Drilled Rotors.
- Application: 1988-1995 Honda Civic / Acura Integra.
- Configuration: Drum 2.71 Offset / Hub Kit.
- Caliper series: Combination Parking Brake.
- Pistons per caliper: 1.
- Piston material: Steel.
- Caliper mounting: Radial.
- Pad shape: D340.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.34 in.
- Caliper finish: Black Powder Coat.
- Rotor material: Iron.
- Rotor surface finish: Black Electro Coat.
- Rotor dimensions: 12.19 in diameter × 0.81 in thickness.
- Caliper mounting arrangement: Radial.
Cataloged vehicle applications
- 1988-1991 Honda Civic — Base
- 1992-1995 Honda Civic — CX
- 1988-1995 Honda Civic — DX
- 1990-1991,1993-1995 Honda Civic — EX
- 1988-1995 Honda Civic — LX
- 1989-1991 Honda Civic — RT 4WD
- 1989-1991 Honda Civic — Si
- 1992-1995 Honda Civic — VX
- 1989 Honda Civic — Wagovan
- 1993-1997 Honda Civic del Sol — S
- 1989-1991 Honda CRX — Base
- 1988 Honda CRX — DX
- 1988-1991 Honda CRX — HF
- 1988-1989 Honda CRX — Si
Selection and installation: Wilwood lists a potential minimum wheel diameter of 17 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
