Description

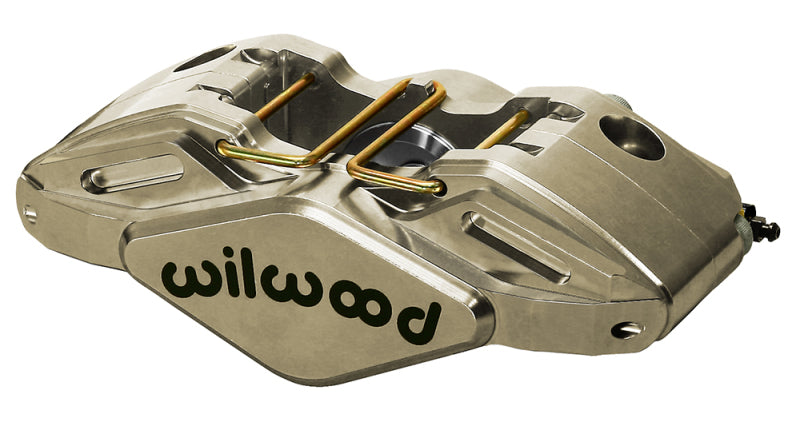

The Wilwood PL2R ST Left Brake Caliper (part number 120-13864-N) is a hydraulic brake caliper configured for the rotor and mounting dimensions listed below. It uses radial mounting with a listed nominal rotor thickness of 0.50 in.
Piston sizing, rotor thickness, and mounting geometry determine how this caliper integrates with the brake system. A matching pad shape identifies the pad interface, while compound selection remains a separate operating-temperature decision.
Technical details
- Piston count: 2.
- Piston material: Thermlock.
- Body material: Forged Aluminium.
- Finish: Nickel Plate.
- Mounting type: Radial.
- Mounting side: Left Hand.
- Mounting centers: 5.08 in.
- Listed piston bore sizes: 1.75 in.
- Nominal rotor thickness: 0.50 in.
- Rotor thickness range: 0.24–0.50 in.
- Rotor diameter range: 9.75–11.00 in.
- Brake pad shape: 7912.
- Fluid inlet thread: M10 x 1.00.
- Dust boots: Not fitted.
Selection and installation: Confirm rotor clearance, bracket alignment, wheel clearance, and the hydraulic connection before installation. Check whether pads and installation hardware are supplied with the specific assembly being purchased.
