Description

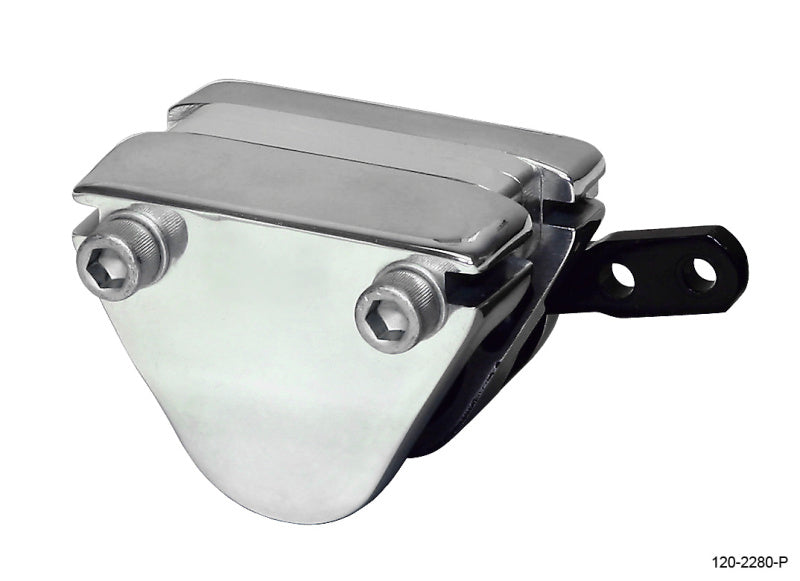

The Wilwood Mech Spot Right Brake Caliper (part number 120-2280-P) provides mechanically actuated braking for its specified mounting arrangement. It uses floating mounting with a listed nominal rotor thickness of 0.81 in.
Mechanical actuation and the mounting geometry must match the intended brake installation. Check the operating linkage and rotor alignment as part of the assembly specification.
Technical details
- Body material: Cast Aluminium.
- Finish: Polish.
- Mounting type: Floating.
- Mounting side: Right Hand.
- Mounting centers: 2.95 in.
- Nominal rotor thickness: 0.81 in.
- Rotor thickness range: 0.75–0.81 in.
- Rotor diameter range: 6.00–13.00 in.
- Brake pad shape: 4209.
- Dust boots: Not fitted.
Selection and installation: Match the caliper part number, rotor specification, and mounting arrangement before ordering.
