Description

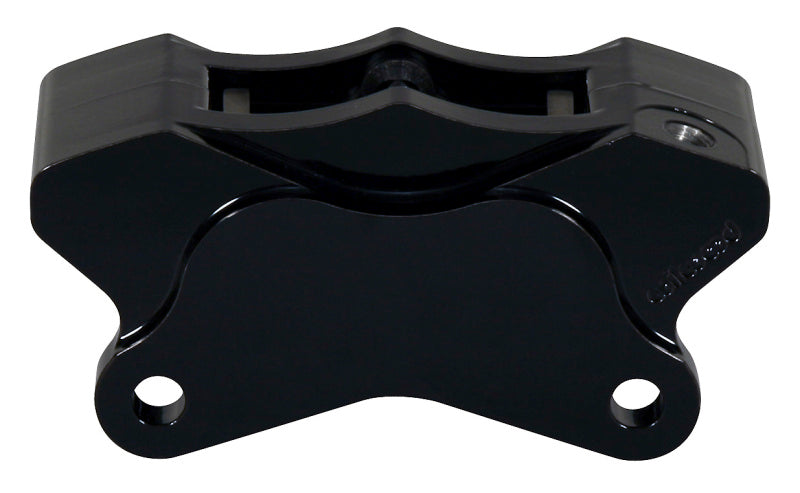

The Wilwood GP310 Motorcycle Rear Left Brake Caliper (part number 120-10175-BK) is a hydraulic brake caliper configured for the rotor and mounting dimensions listed below. It uses lug mounting with a listed nominal rotor thickness of 0.35 in.
Piston sizing, rotor thickness, and mounting geometry determine how this caliper integrates with the brake system. A matching pad shape identifies the pad interface, while compound selection remains a separate operating-temperature decision.
Technical details
- Piston count: 4.
- Piston material: Stainless.
- Body material: Billet Aluminium.
- Finish: Black Powder Coat.
- Mounting type: Lug.
- Mounting side: Left Hand.
- Mounting centers: 3.50 in.
- Listed piston bore sizes: 1.25 / 1.25 in.
- Nominal rotor thickness: 0.35 in.
- Rotor thickness range: 0.29–0.35 in.
- Rotor diameter range: 9.00–11.50 in.
- Brake pad shape: 6208.
- Fluid inlet thread: 3/8-24.
- Dust boots: Not fitted.
Selection and installation: Confirm rotor clearance, bracket alignment, wheel clearance, and the hydraulic connection before installation. Check whether pads and installation hardware are supplied with the specific assembly being purchased.
