Description

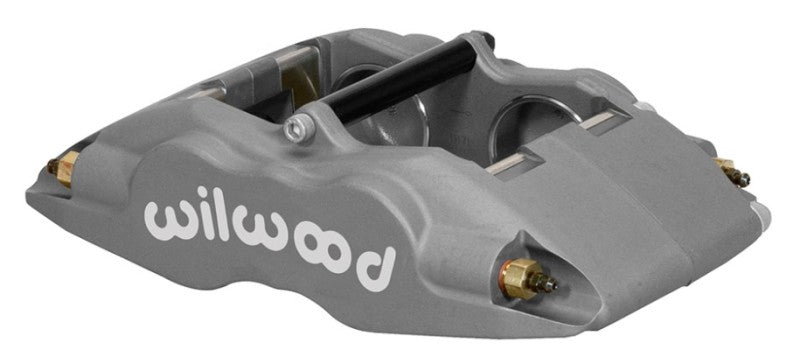

The Wilwood Forged Superlite Internal 4 Left Brake Caliper (part number 120-11330) is a hydraulic brake caliper configured for the rotor and mounting dimensions listed below. It uses lug mounting with a listed nominal rotor thickness of 1.25 in.
Piston sizing, rotor thickness, and mounting geometry determine how this caliper integrates with the brake system. A matching pad shape identifies the pad interface, while compound selection remains a separate operating-temperature decision.
Technical details
- Piston count: 4.
- Piston material: Stainless.
- Body material: Forged Aluminium.
- Finish: Type III Anodize.
- Mounting type: Lug.
- Mounting side: Left Hand.
- Mounting centers: 3.50 in.
- Listed piston bore sizes: 1.88 / 1.75 in.
- Nominal rotor thickness: 1.25 in.
- Rotor thickness range: 1.19–1.38 in.
- Rotor diameter range: 11.75–13.06 in.
- Brake pad shape: 7420.
- Fluid inlet thread: 1/8-27 NPT.
- Dust boots: Not fitted.
Selection and installation: Confirm rotor clearance, bracket alignment, wheel clearance, and the hydraulic connection before installation. Check whether pads and installation hardware are supplied with the specific assembly being purchased.
