Description

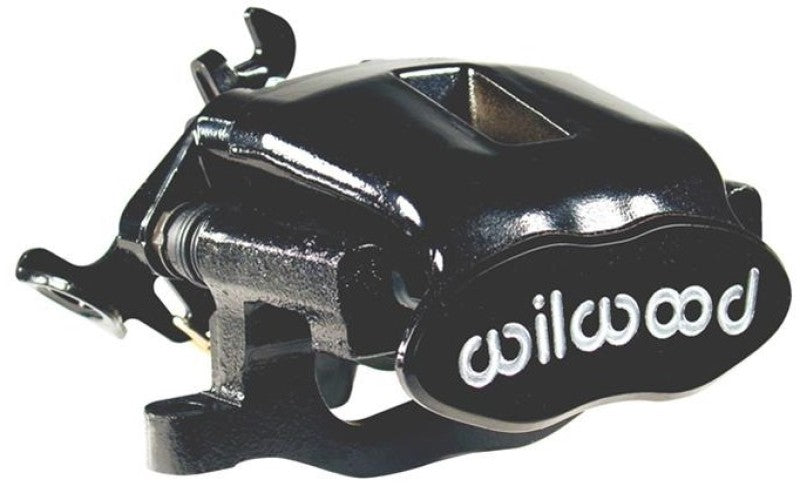

The Wilwood Combination Parking Brake Left Brake Caliper (part number 120-10112-BK) combines hydraulic service-brake operation with a mechanical parking-brake function. It uses radial mounting with a listed nominal rotor thickness of 0.81 in.
Hydraulic and mechanical functions must both match the vehicle’s brake arrangement. Confirm the hydraulic connection and parking-brake cable interface in addition to rotor clearance.
Technical details
- Piston count: 1.
- Piston material: Steel.
- Body material: Aluminium / Steel.
- Finish: Black Powder Coat.
- Mounting type: Radial.
- Mounting side: Left Hand.
- Mounting centers: 5.98 in.
- Listed piston bore sizes: 1.62 in.
- Nominal rotor thickness: 0.81 in.
- Rotor thickness range: 0.75–0.81 in.
- Rotor diameter range: 11.00–13.00 in.
- Brake pad shape: D340.
- Fluid inlet thread: M10 x 1.00.
- Dust boots: Fitted.
Selection and installation: Verify the required mounting side and bracket configuration; appearance alone does not establish interchangeability.
