Description

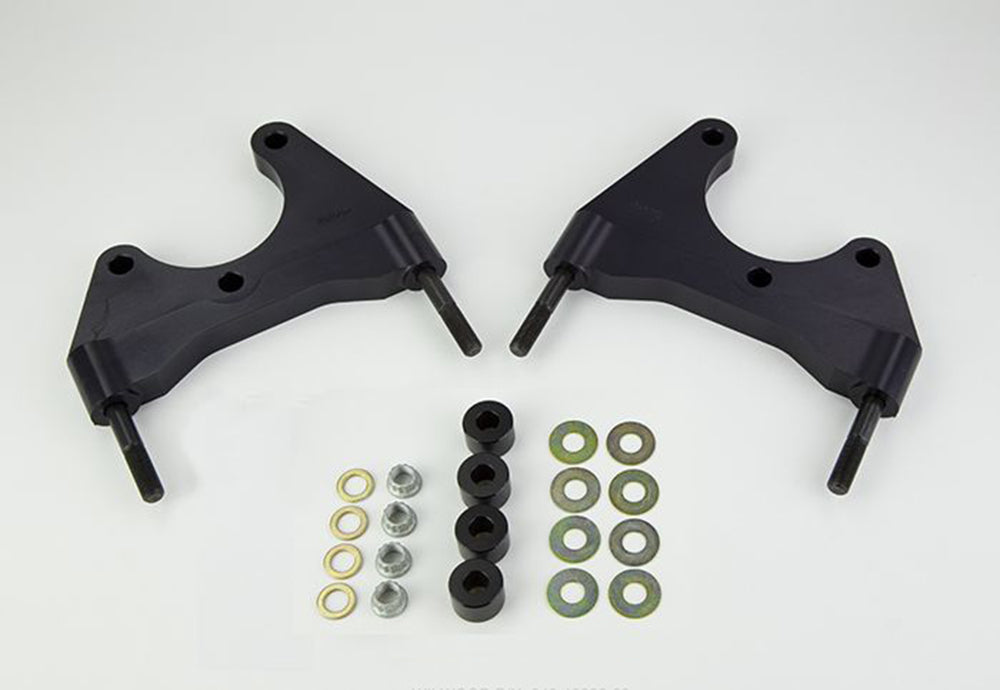

The Wilwood CPB Caliper Mounting Bracket Kit (part number 249-10222/23) establishes the mounting arrangement specified below for the matching brake components.
Bracket geometry locates the caliper relative to the rotor. Caliper mounting centers, rotor diameter, and application-specific offset must work together; matching one dimension alone does not establish interchangeability.
Technical details
- Selected configuration: Rear / 12.19" Rotor / Radial Mount / 2.46 Hub Offset.
- Application: Honda Civic / Acura Integra.
- Material: Aluminum.
- Mounting type: Radial.
- Mounting side: L/H & R/H.
- Mounting centers: 5.98 in.
- Specified rotor diameter: 12.19 in.
- Mounting thread: 3/8-24.
Selection and installation: Match the bracket part number to the intended caliper, spindle or axle, and rotor configuration before ordering.
