Description

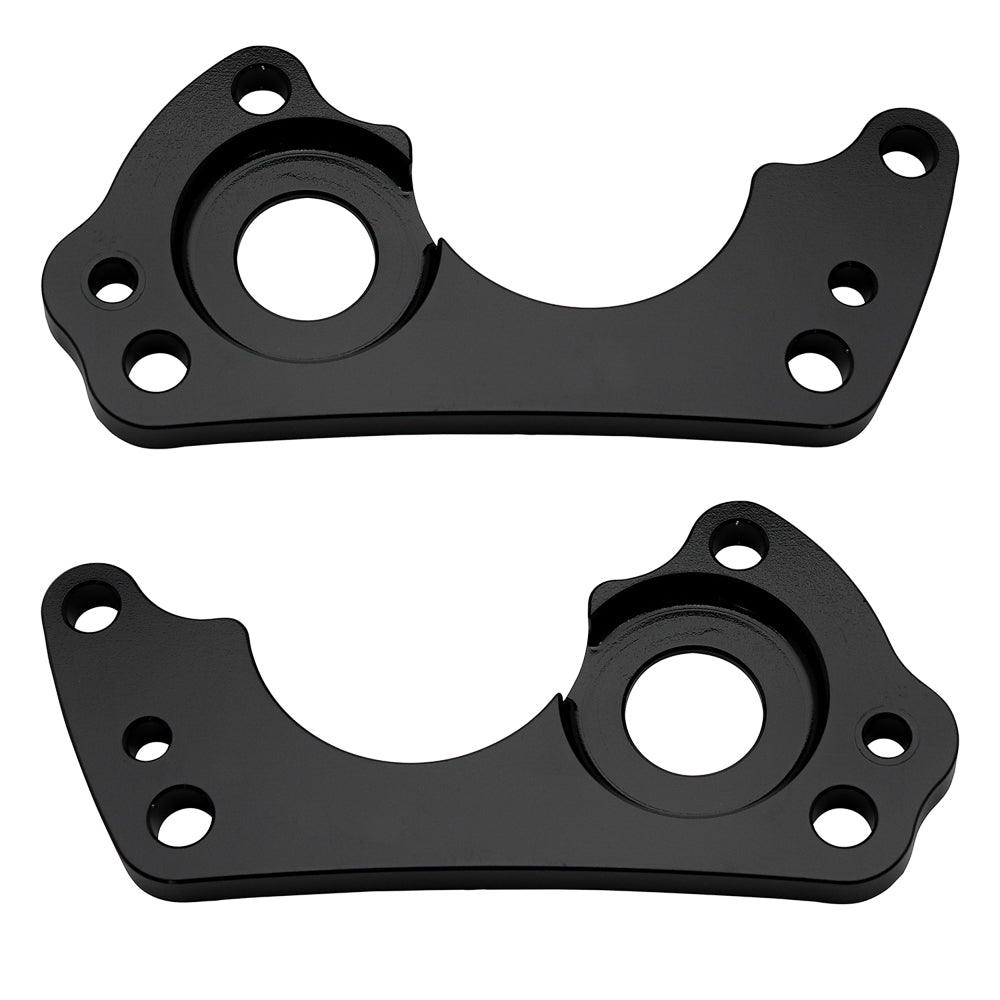

The Wilwood EPB Caliper Mounting Bracket (part number 249-17447/48) establishes the mounting arrangement specified below for the matching brake components.
Bracket geometry locates the caliper relative to the rotor. Caliper mounting centers, rotor diameter, and application-specific offset must work together; matching one dimension alone does not establish interchangeability.
Technical details
- Selected configuration: Rear / 15" Rotor / 4.75/4.65" Mount / Radial Mount / 1.72/2.21" Height.
- Material: Aluminum.
- Mounting type: Radial.
- Mounting side: L/H & R/H.
- Mounting centers: 4.75 in.
- Specified rotor diameter: 15 in.
Selection and installation: Match the bracket part number to the intended caliper, spindle or axle, and rotor configuration before ordering.
