Description

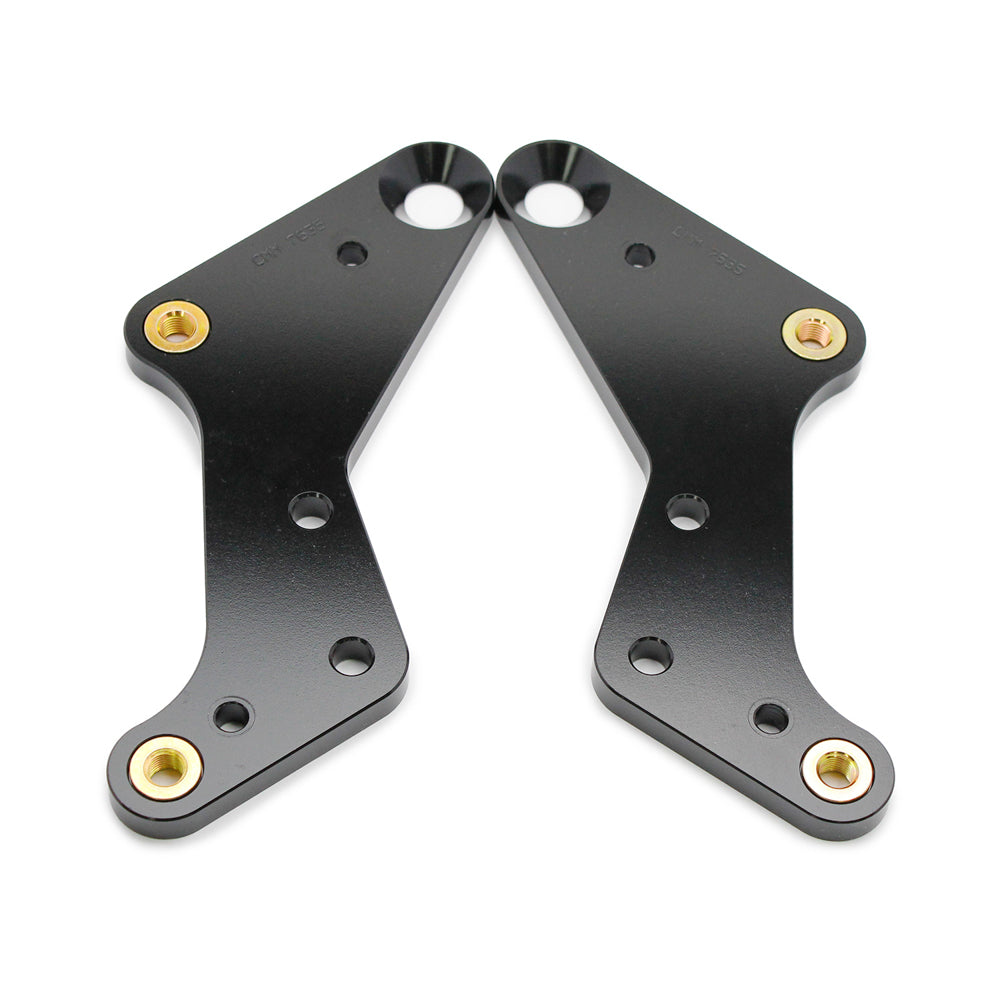

The Wilwood DL Caliper Mounting Bracket (part number 249-7635/36) establishes the mounting arrangement specified below for the matching brake components.
Bracket geometry locates the caliper relative to the rotor. Caliper mounting centers, rotor diameter, and application-specific offset must work together; matching one dimension alone does not establish interchangeability.
Technical details
- Selected configuration: Front / 12.19" Rotor / Lug Mount.
- Application: 1955-1957 Chevrolet.
- Material: Aluminum.
- Mounting type: Lug.
- Mounting side: L/H & R/H.
- Mounting centers: 5.25 in.
- Specified rotor diameter: 12.19 in.
- Mounting thread: 3/8-24.
Selection and installation: Match the bracket part number to the intended caliper, spindle or axle, and rotor configuration before ordering.
