Description

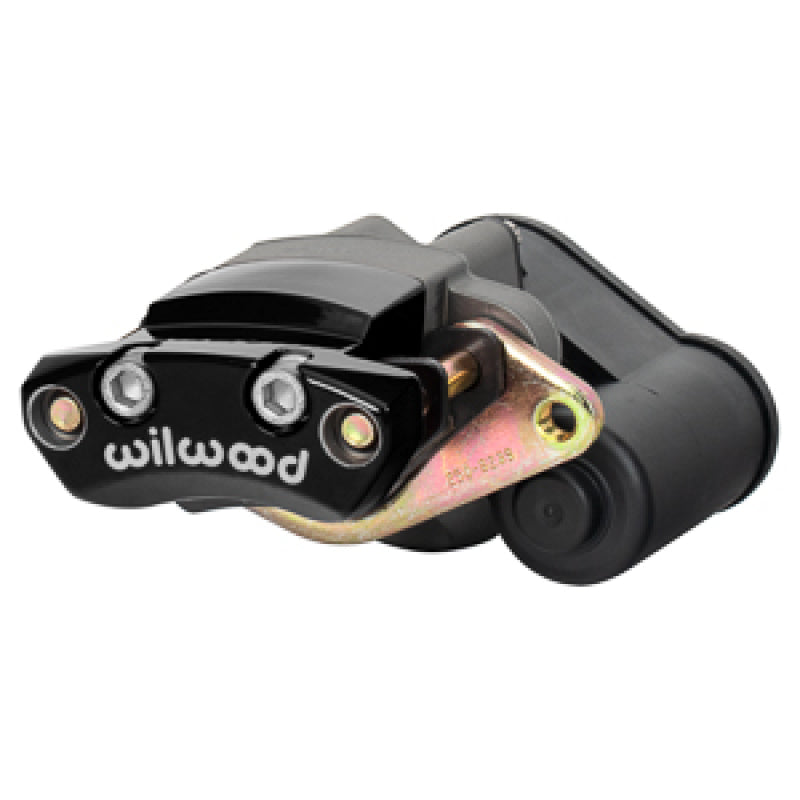

The Wilwood Electronic Parking Brake Left Caliper (part number 120-15688-BK) provides electrically actuated parking-brake clamping. It uses lug mounting with a listed nominal rotor thickness of 1.25 in.
This caliper serves the parking-brake function. The installation also requires a compatible mounting arrangement and electrical actuation system; a related controller shown in a parts listing should not be assumed to be included.
Technical details
- Piston count: 1.
- Piston material: Steel.
- Body material: Aluminium / Steel.
- Finish: Black Powder Coat.
- Mounting type: Lug.
- Mounting side: Left Hand.
- Mounting centers: 4.75 in.
- Nominal rotor thickness: 1.25 in.
- Rotor thickness range: 1.19–1.25 in.
- Rotor diameter range: 11.00–14.00 in.
- Brake pad shape: 6407.
- Dust boots: Not fitted.
Selection and installation: Confirm side, rotor thickness, bracket geometry, and controller compatibility before selecting the caliper.
