Description

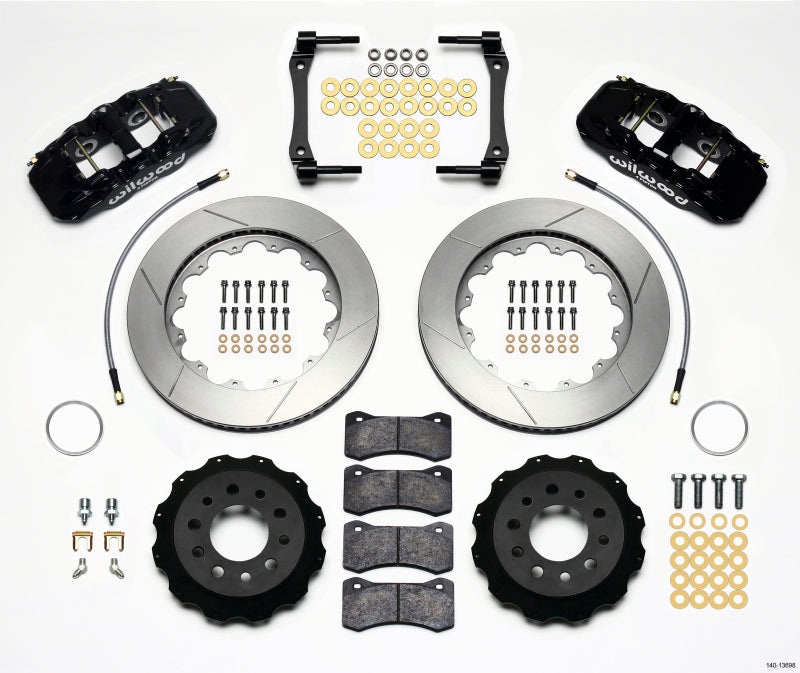

The Wilwood AERO4 Rear Brake Kit (part number 140-13698) is configured with 14.25 in Slotted Rotors - Black Calipers. Application: 2014+ Chevrolet Corvette (C7).
The radial-mount caliper arrangement uses a dedicated bracket to establish caliper position over the rotor. Bracket geometry and rotor offset are therefore part of the fitment specification. This application retains the original-equipment parking brake arrangement; confirm that the required components are present and serviceable. The application-specific design accounts for original-equipment master-cylinder output and ABS operation where fitted. Retain the specified vehicle and brake configuration when evaluating compatibility. The rotor configuration and caliper finish shown here identify this specific part number. Match the required axle, spindle, mounting arrangement, and any listed offset to the vehicle’s installed components.
Technical details
- Selected configuration: 14.25 in Slotted Rotors - Black Calipers.
- Application: 2014+ Chevrolet Corvette (C7).
- Configuration: Includes Brake Lines.
- Caliper series: AERO4.
- Pistons per caliper: 4.
- Piston material: Stainless.
- Caliper mounting: Radial.
- Pad shape: 6617.
- Pad compound: BP-10.
- Listed piston bore sizes: 1.12 / 1.12 in.
- Included brake lines: Stainless-steel braided brake hoses.
Cataloged vehicle applications
- 2014-2016 Chevrolet Corvette — Stingray
- 2015-2016 Chevrolet Corvette — Z06
Selection and installation: Wilwood lists a potential minimum wheel diameter of 18 inches. Actual clearance depends on wheel barrel and spoke shape; verify the wheel-clearance dimensions for this kit.
