Description

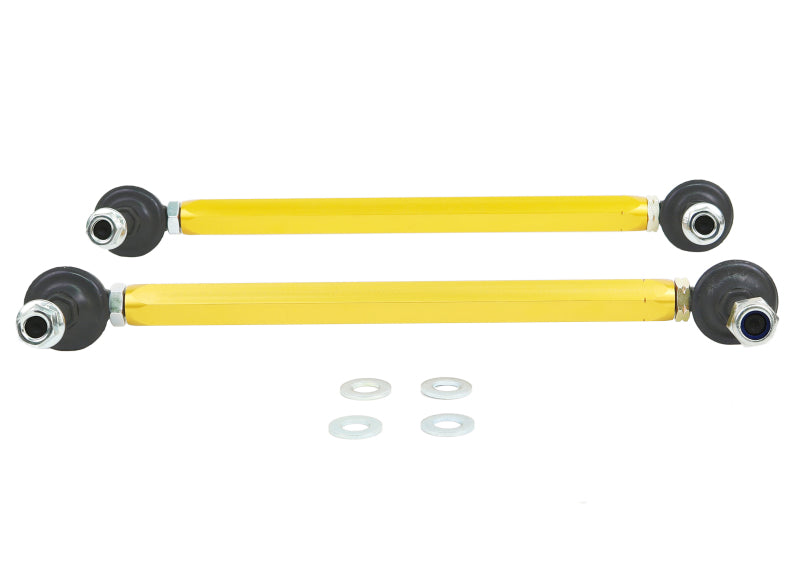

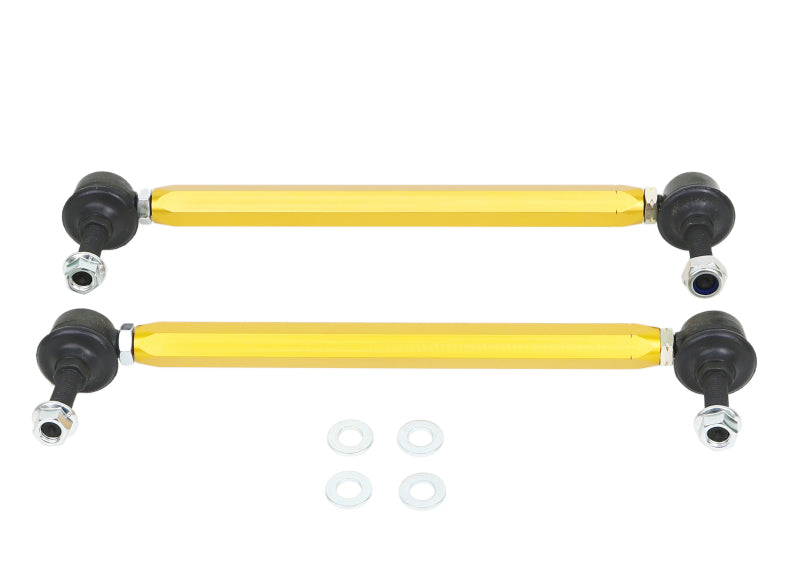

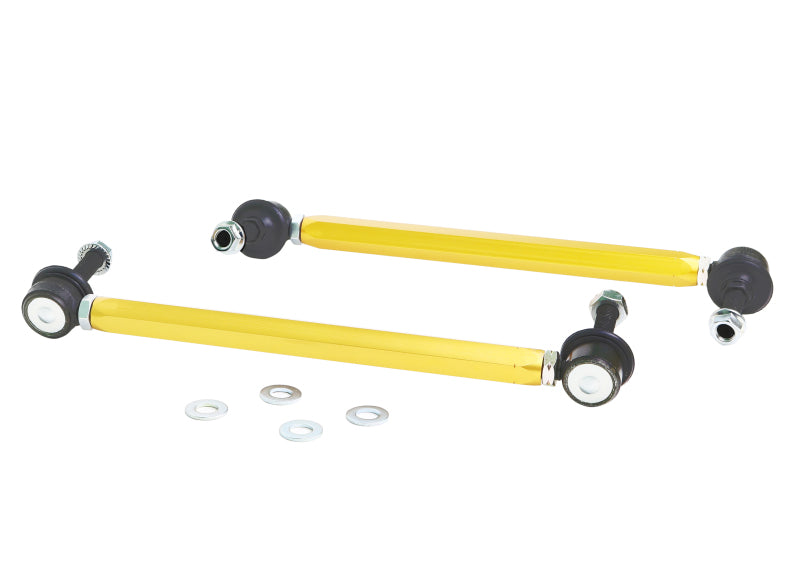

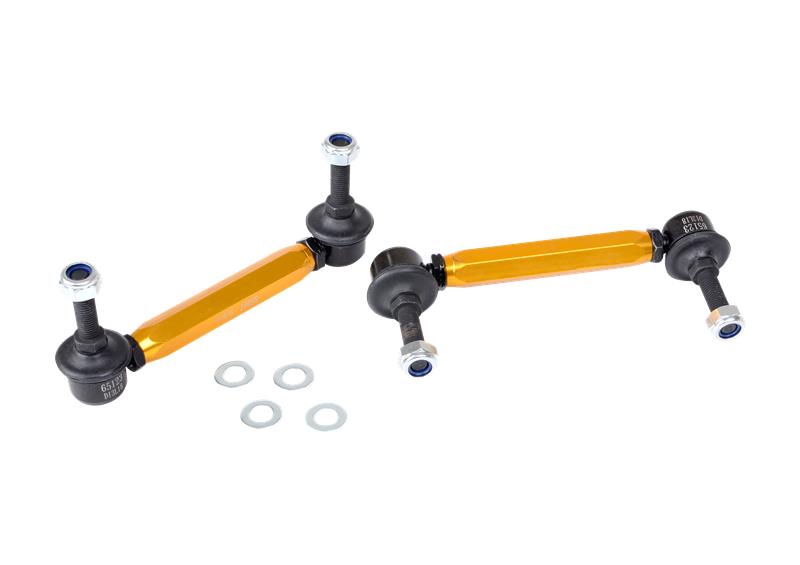

Whiteline Universal Sway Bar Link Kit 270mm-295mm Heavy Duty Adjustable 10mm Ball / Ball Style — The sway bar cannot do its job consistently if the connection between the bar and suspension is worn, overly compliant or sitting at poor geometry.
A healthy link transmits suspension movement into the sway bar without unnecessary delay or deflection. Where the exact Whiteline link is adjustable, length can be used to place the bar in better geometry and remove unwanted preload at normal ride height rather than forcing the bar into position during installation.
Technical Overview
- Published size: 270mm / 295mm / 10mm
- Adjustment: Adjustable
- Whiteline part number: KLC140-275
Who This Is For
Most valuable when the factory links are worn, an upgraded sway bar is being installed, or ride-height changes have altered link geometry. Adjustable versions add setup value when preload or link angle needs attention.
Installation & Setup
Whiteline's adjustable-link instructions call for setting length at normal ride height where possible, removing unwanted sway-bar preload, maintaining adequate thread engagement, and rechecking hardware after the initial drive. Apply those steps only to adjustable designs that use this construction.
