Description
Fits
- MINI Cooper (F56) Hardtop 2 Door including S, JCW; with electronic dampers
Fitment Requirements
- Electronic dampers: this application is for vehicles equipped with electronic damping
Recommended when you want: Maximum damper tuning range with independently adjustable rebound, low-speed compression, and high-speed compression.
Product Features

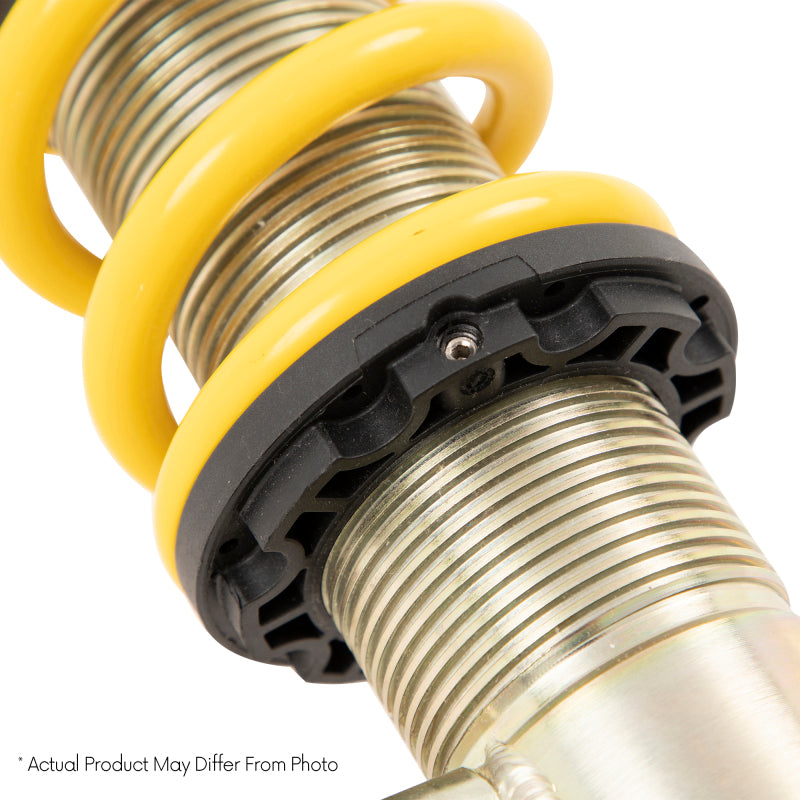

- Seamless application-specific ride-height adjustment
- 16-click adjustable rebound damping

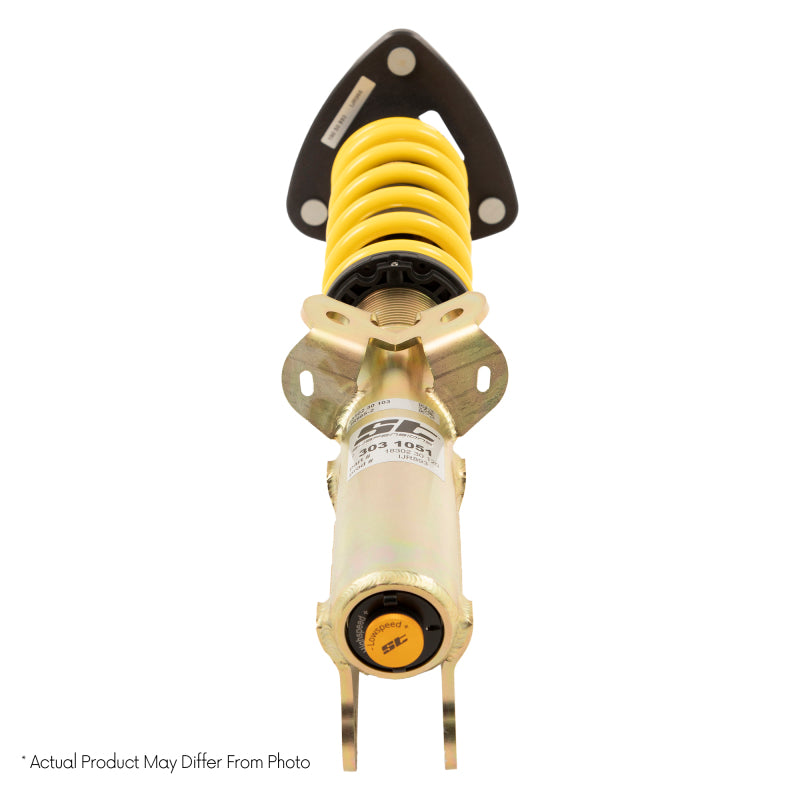

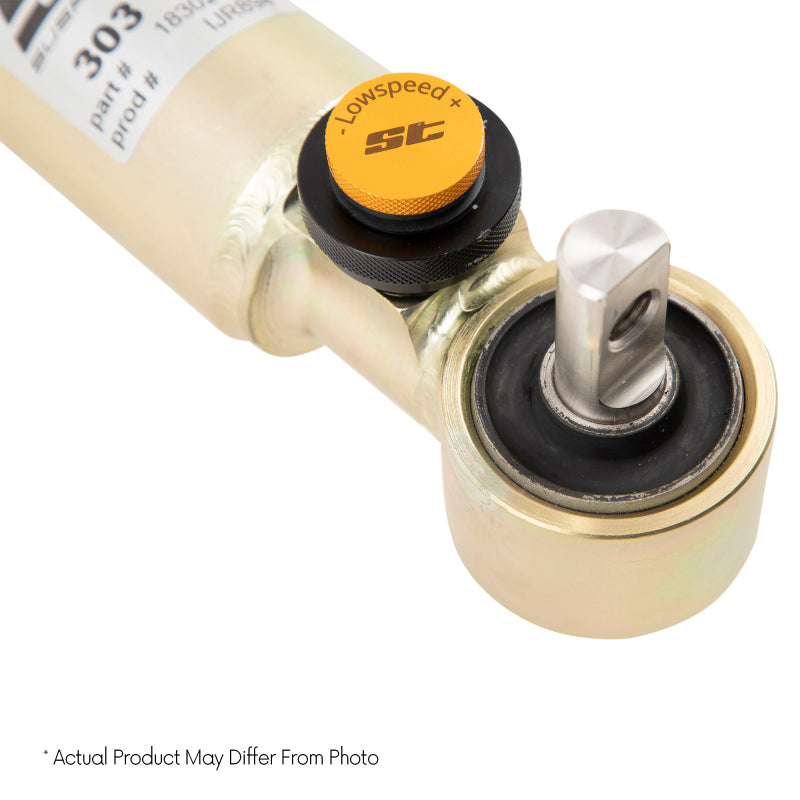

- 24-click low-speed compression adjustment
- 24-click high-speed compression adjustment

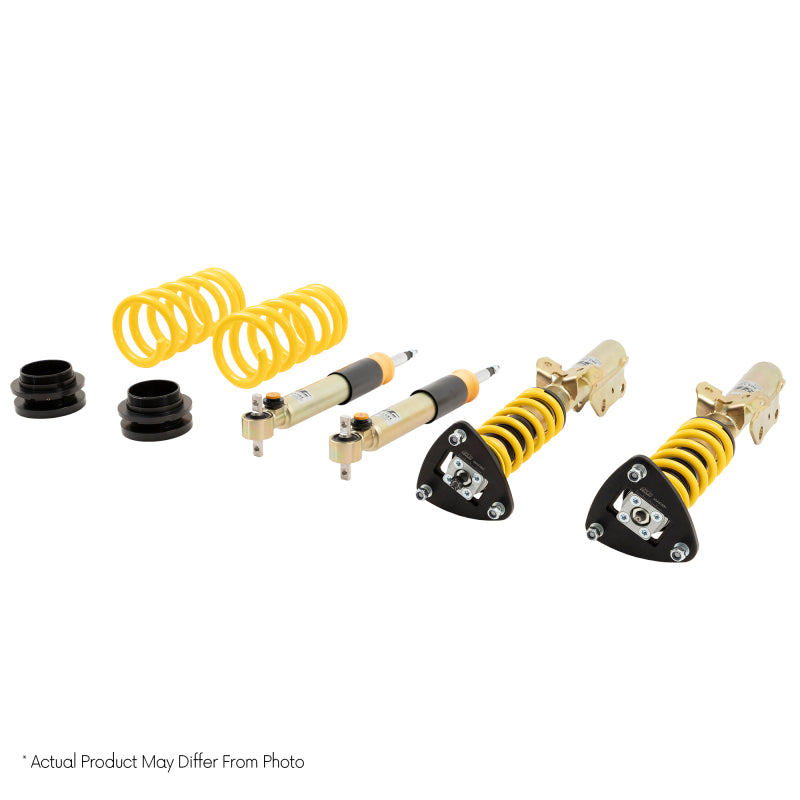

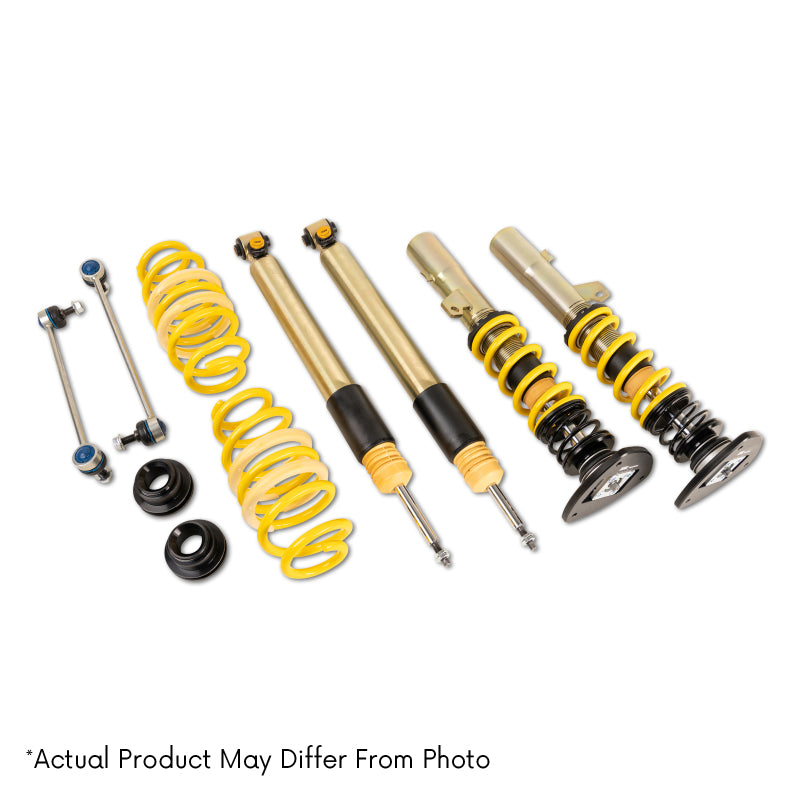

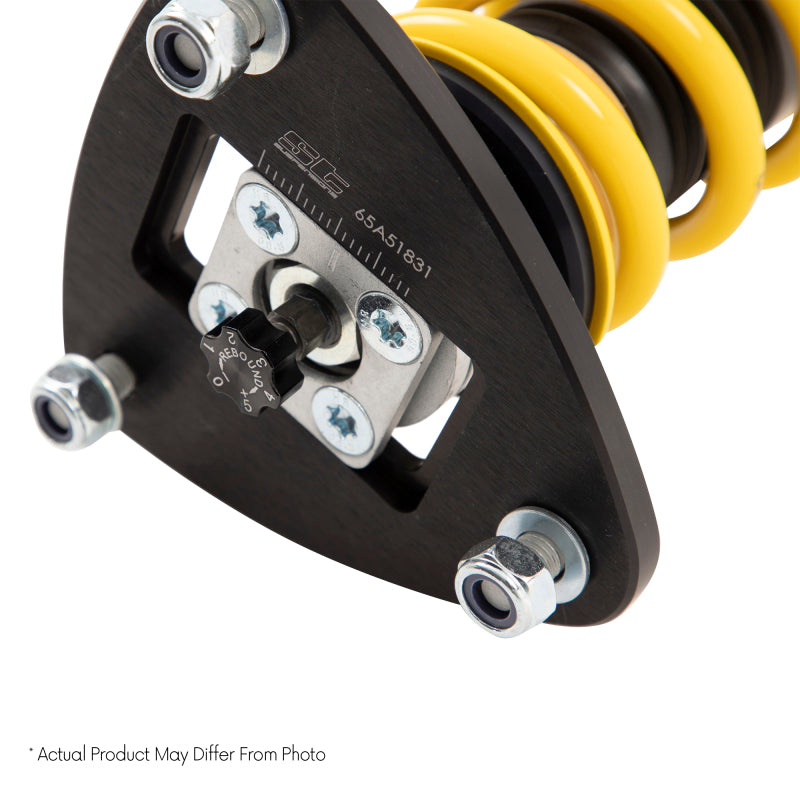

- Two-piece race-spring system and adjustable unibal top mounts where supplied for the application
Application Specifications
| Ride-height range | Front: 20-45 mm / Rear: 20-45 mm |
| Spring rates | Front: 400 lb/in / Rear: P lb/in |
Additional Fitment Notes
- Only for vehicles which have electronic dampers
- For rear axle camber adjustment we recommend the installation of the car specific adjustable control arm set from KW. KW Part-no. 68510131
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510477
Compare ST Coilover Families
| System | Height | Rebound | Compression | Top Mounts |
|---|---|---|---|---|
| ST X | Yes | Fixed | — | — |
| ST XA | Yes | 16-click rebound | — | — |
| ST XTA | Yes | 16-click rebound | — | Top mounts* |
| ST XTA Plus 3 | Yes | 16-click rebound | 24-click high + low speed | Top mounts* |
*Top-mount design and adjustability are application-dependent. Confirm the exact kit contents for your vehicle.
ST Part Number: 18202208AH
