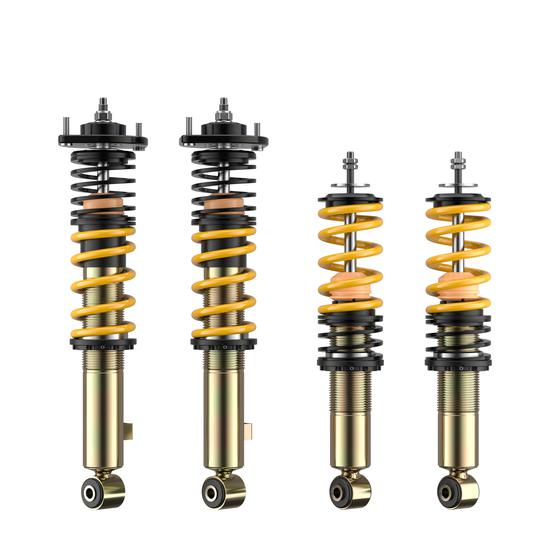

ST Suspensions XTA Plus 3 Coilover Kit - 2015-2020 Audi A3 / 2015-2020 Audi S3 / 2017-2020 Audi RS3 Quattro (8V)

ST SuspensionsSKU: STS182021080M

Price:
$2,909

Description

The ST Suspensions XTA Plus 3 Coilover Kit for Audi A3/S3/RS3 Quattro (8V) combines adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. It is intended for a driver who wants to develop a suspension setup around the vehicle, tires and driving conditions.

Adjustment and construction

  • Application-specific spring-and-damper suspension package.
  • Threaded ride-height adjustment within the permitted application range.
  • Galvanized steel damper housings and protective damper sealing.
  • Independent rebound adjustment.
  • Separate low-speed and high-speed compression adjustment.
  • Performance spring system with application-dependent uniball top-mount equipment.

What the adjustment means

Low-speed compression concerns slower damper movements associated with braking, acceleration and cornering inputs. High-speed compression concerns faster damper movements such as sharp bumps. These terms describe damper movement, not vehicle speed. Rebound controls extension after compression. Work from the supplied baseline, change one function at a time and record the result.

Technical specifications

Specification Detail
Product ST XTA Plus 3 coilover kit
Catalog SKU STS182021080M
Manufacturer part number 182021080M
Ride-height adjustment Yes, within the application-specific permitted range
Damping adjustment Rebound, low-speed compression and high-speed compression independently adjustable

Application and installation considerations

Match the specified all-wheel-drive application and any body-style or damper-equipment restrictions. Do not substitute a rear-wheel-drive or front-wheel-drive kit solely because the vehicle shares a model name.

Set ride height with usable suspension travel and wheel clearance in mind. Follow the supplied fitting procedure, check clearance through steering and suspension movement, and have the alignment checked after installation or a meaningful height change. Retained mounts and supporting suspension parts should be inspected before fitting.

Vehicle applications

Match the model, year and trim below together with the body style, drivetrain and suspension-equipment requirements stated above. A trim name alone does not establish compatibility with every factory suspension option.

Year Make Model Trim
2015-2020 Audi A3 Quattro Premium
2015-2020 Audi A3 Quattro Premium Plus
2015-2019 Audi A3 Quattro Prestige
2017-2020 Audi RS3 Base
2020 Audi S3 Premium
2015-2020 Audi S3 Premium Plus
2015-2019 Audi S3 Prestige
