Description

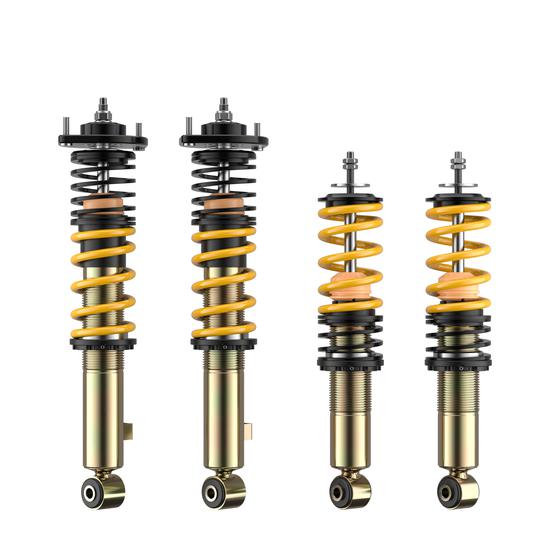

The ST Suspensions XTA Plus 3 Coilover Kit for BMW M3 Coupe/Convertible (E46) (Including CSL) combines adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. It is intended for a driver who wants to develop a suspension setup around the vehicle, tires and driving conditions.
Adjustment and construction
- Application-specific spring-and-damper suspension package.
- Threaded ride-height adjustment within the permitted application range.
- Galvanized steel damper housings and protective damper sealing.
- Independent rebound adjustment.
- Separate low-speed and high-speed compression adjustment.
- Performance spring system with application-dependent uniball top-mount equipment.
What the adjustment means
Low-speed compression concerns slower damper movements associated with braking, acceleration and cornering inputs. High-speed compression concerns faster damper movements such as sharp bumps. These terms describe damper movement, not vehicle speed. Rebound controls extension after compression. Work from the supplied baseline, change one function at a time and record the result.
Technical specifications
| Specification | Detail |
|---|---|
| Product | ST XTA Plus 3 coilover kit |
| Catalog SKU | STS1820220823 |
| Manufacturer part number | 1820220823 |
| Ride-height adjustment | Yes, within the application-specific permitted range |
| Damping adjustment | Rebound, low-speed compression and high-speed compression independently adjustable |
Application and installation considerations
Body style is part of this application: a wagon, convertible and sedan can use different spring or damper specifications even when they share a model family. Match the configuration stated for this part number.
Set ride height with usable suspension travel and wheel clearance in mind. Follow the supplied fitting procedure, check clearance through steering and suspension movement, and have the alignment checked after installation or a meaningful height change. Retained mounts and supporting suspension parts should be inspected before fitting.
Application requirements
- Including CSL
Vehicle applications
Match the model, year and trim below together with the body style, drivetrain and suspension-equipment requirements stated above. A trim name alone does not establish compatibility with every factory suspension option.
| Year | Make | Model | Trim |
|---|---|---|---|
| 2001-2006 | BMW | M3 | Base |
