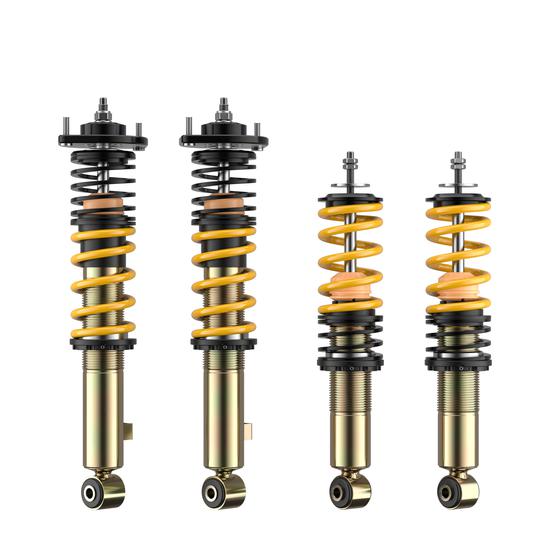

ST Suspensions XTA Plus 3 Coilover Kit - 2004-2013 BMW M3 (E9X) (With EDC)

ST SuspensionsSKU: STS1820220857

Price:
$2,909

Description

The ST Suspensions XTA Plus 3 Coilover Kit for 2004-2013 BMW M3 (E9X) (With EDC) combines adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. It is intended for a driver who wants to develop a suspension setup around the vehicle, tires and driving conditions.

Adjustment and construction

  • Application-specific spring-and-damper suspension package.
  • Threaded ride-height adjustment within the permitted application range.
  • Galvanized steel damper housings and protective damper sealing.
  • Independent rebound adjustment.
  • Separate low-speed and high-speed compression adjustment.
  • Performance spring system with application-dependent uniball top-mount equipment.

What the adjustment means

Low-speed compression concerns slower damper movements associated with braking, acceleration and cornering inputs. High-speed compression concerns faster damper movements such as sharp bumps. These terms describe damper movement, not vehicle speed. Rebound controls extension after compression. Work from the supplied baseline, change one function at a time and record the result.

Technical specifications

Specification Detail
Product ST XTA Plus 3 coilover kit
Catalog SKU STS1820220857
Manufacturer part number 1820220857
Ride-height adjustment Yes, within the application-specific permitted range
Damping adjustment Rebound, low-speed compression and high-speed compression independently adjustable

Application and installation considerations

Match the factory electronic-damper specification shown for this application. For replacement-damper kits, verify the required deactivation or cancellation procedure; electronic factory adjustment is not automatically retained by installing aftermarket dampers.

Set ride height with usable suspension travel and wheel clearance in mind. Follow the supplied fitting procedure, check clearance through steering and suspension movement, and have the alignment checked after installation or a meaningful height change. Retained mounts and supporting suspension parts should be inspected before fitting.

Application requirements

  • With EDC

Vehicle applications

Match the model, year and trim below together with the body style, drivetrain and suspension-equipment requirements stated above. A trim name alone does not establish compatibility with every factory suspension option.

Year Make Model Trim
2008-2013 BMW M3 Base
