Description
Fits
- 1999–2004 Volkswagen Jetta Mk4 Sedan & Wagon (1J) 1.8, 2.0, 2.8 + 1.9TDI
Recommended when you want: Height and rebound adjustment with a more performance-focused race-spring and top-mount configuration where supplied.
Product Features

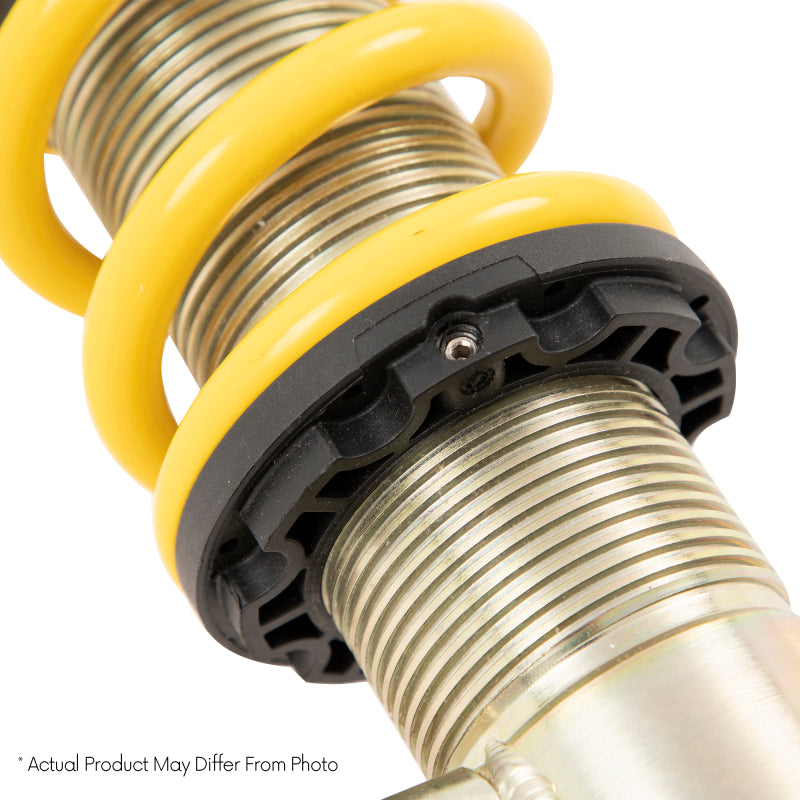

- Seamless application-specific ride-height adjustment
- 16-click adjustable rebound damping
- Linear race-spring system

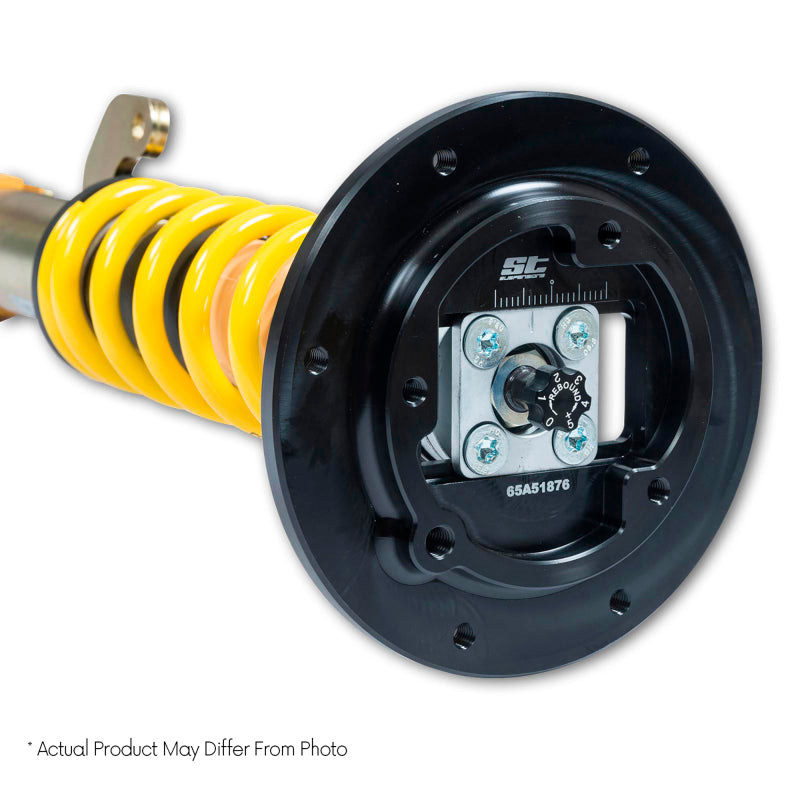

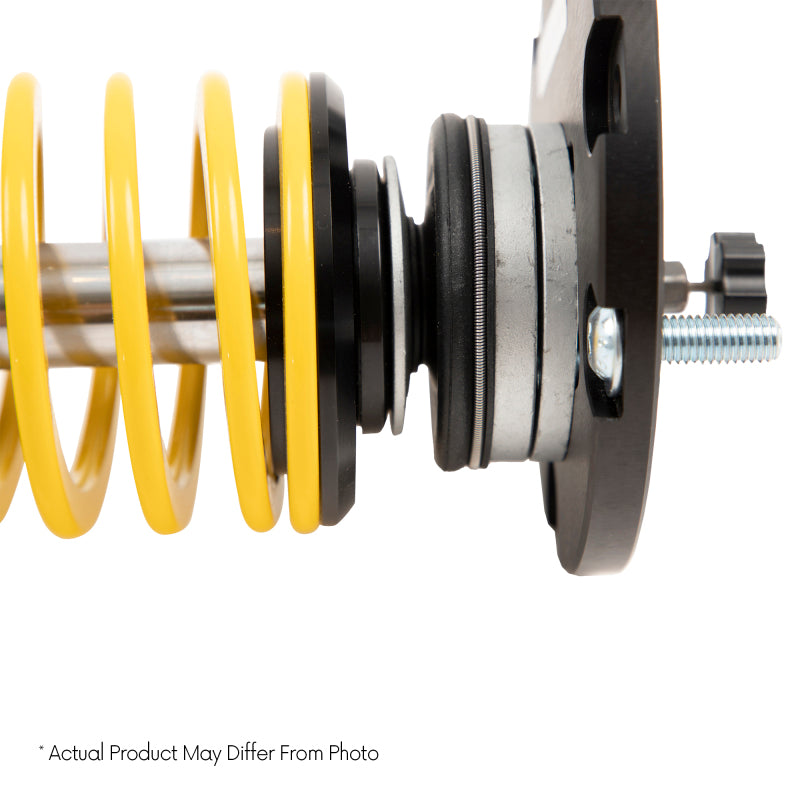

- Adjustable aluminum unibal top mounts where supplied for the application
Application Specifications
| Ride-height range | Front: 30-50 mm / Rear: 30-50 mm |
| Spring rates | Front: 340 lb/in / Rear: P lb/in |
Additional Fitment Notes
- Excluding all models with 4 wheel drive
- In combination with the original wheel and tires, wheel spacers might need to be used.
- Height adjustment at the rear axle over special bushes
- Only for models with a right hand drive shaft of 32mm or 42mm diameter. Models with a 50mm drive shaft should mount a special anti roll bar endlink.
- Because of the construction of the car the damping adjustment can only made when the damper is not mounted. By modifying the interior trim this problem can be avoided.
- Extreme lowering heights might cause major disruption of the drive staft ant the anti roll bar and/or chassis.
Compare ST Coilover Families
| System | Height | Rebound | Compression | Top Mounts |
|---|---|---|---|---|
| ST X | Yes | Fixed | — | — |
| ST XA | Yes | 16-click rebound | — | — |
| ST XTA | Yes | 16-click rebound | — | Top mounts* |
| ST XTA Plus 3 | Yes | 16-click rebound | 24-click high + low speed | Top mounts* |
*Top-mount design and adjustability are application-dependent. Confirm the exact kit contents for your vehicle.
ST Part Number: 18282802
