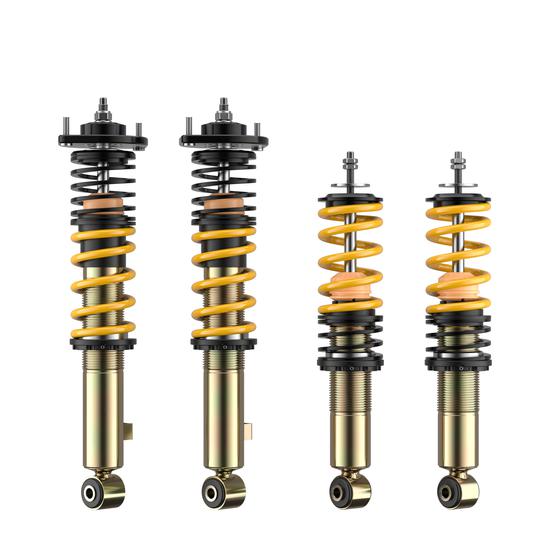

ST Suspensions XTA Plus 3 Coilover Kit - 2016-2021 BMW M2 (F87)

ST SuspensionsSKU: STS18202208BH

Price:
$3,099

Description

The ST Suspensions XTA Plus 3 Coilover Kit for 2016-2021 BMW M2 (F87) combines adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. It is intended for a driver who wants to develop a suspension setup around the vehicle, tires and driving conditions.

Adjustment and construction

  • Application-specific spring-and-damper suspension package.
  • Threaded ride-height adjustment within the permitted application range.
  • Galvanized steel damper housings and protective damper sealing.
  • Independent rebound adjustment.
  • Separate low-speed and high-speed compression adjustment.
  • Performance spring system with application-dependent uniball top-mount equipment.

What the adjustment means

Low-speed compression concerns slower damper movements associated with braking, acceleration and cornering inputs. High-speed compression concerns faster damper movements such as sharp bumps. These terms describe damper movement, not vehicle speed. Rebound controls extension after compression. Work from the supplied baseline, change one function at a time and record the result.

Technical specifications

Specification Detail
Product ST XTA Plus 3 coilover kit
Catalog SKU STS18202208BH
Manufacturer part number 18202208BH
Ride-height adjustment Yes, within the application-specific permitted range
Damping adjustment Rebound, low-speed compression and high-speed compression independently adjustable
Main-spring characteristic Linear, front and rear
Front main-spring identification 50-200*
Rear main-spring identification 120-200*
Front additional-spring identification 3-60-80
Rear additional-spring identification 20-60-80

Lowering range

Axle Nominal lowering
Front 20-40mm (approximately 0.8-1.6in)
Rear 20-45mm (approximately 0.8-1.8in)

These are application-specific lowering figures relative to the original suspension reference height. Factory-lowered vehicles may see a smaller additional reduction. Set the vehicle within the permitted installation dimensions and check available suspension travel and wheel clearance; the lowest setting is not automatically the best driving setup.

Application and installation considerations

Confirm the exact model year, engine or trim, body style and factory suspension equipment against this application. Products for related chassis or higher-performance trims are not interchangeable solely because the model names are similar.

Set ride height with usable suspension travel and wheel clearance in mind. Follow the supplied fitting procedure, check clearance through steering and suspension movement, and have the alignment checked after installation or a meaningful height change. Retained mounts and supporting suspension parts should be inspected before fitting.

Vehicle applications

Match the model, year and trim below together with the body style, drivetrain and suspension-equipment requirements stated above. A trim name alone does not establish compatibility with every factory suspension option.

Year Make Model Trim
2016-2018 BMW M2 Base
2019-2021 BMW M2 Competition
2020 BMW M2 CS
