ST Suspensions X Coilover Kit - 2012-2018 Audi A7 Sportback Quattro (4G)

ST SuspensionsSKU: STS13210078

Price:
$1,089

Description

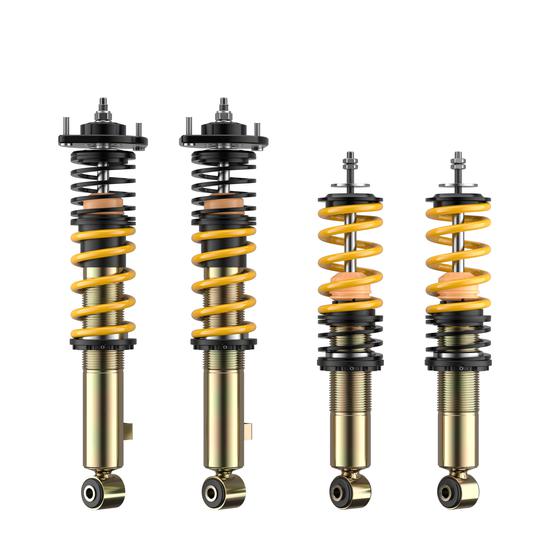

The ST Suspensions X Coilover Kit 13210078 is a height-adjustable suspension package with fixed damping for the specified Audi A7 Sportback Quattro 4G application. It suits an owner seeking adjustable height and a preset damper setup, without external rebound or compression adjustment.

Technical features

  • Adjustable ride height within the permitted application range.
  • Preset damping without external rebound or compression adjustment.
  • Galvanized steel damper housings.
  • Composite spring adjustment perches with stainless steel inserts.

Technical specifications

Specification Detail
Product ST X coilover kit
Catalog SKU STS13210078
Manufacturer part number 13210078
Damping adjustment Fixed; not externally adjustable
Primary application Audi A7 Sportback Quattro (4G)
Suspension restriction Confirm non-electronic-damper and non-self-leveling application

Application-specific lowering

Application Front Rear
Audi A7 Sportback 4G 35-60mm (approximately 1.4-2.4in) 30-55mm (approximately 1.2-2.2in)

These A7 lowering figures are not interchangeable with figures for another vehicle using the same part number. Factory-lowered suspension and the original vehicle configuration affect the additional reduction achieved.

Application considerations

Confirm the factory damping and self-leveling equipment, permitted axle loads and exact vehicle application before ordering. The presence of a matching model name in a fitment table does not override equipment restrictions. Set height within the supplied installation dimensions, check wheel clearance and have alignment checked after fitting.

Other documented applications

The same part number has also been documented for selected A4 and S4 Avant B8 configurations. Those applications have different lowering figures and axle-load requirements and must be matched independently; the A7 specifications and application table below do not establish A4/S4 compatibility.

Vehicle applications

Match the model, year and trim below together with the body style, drivetrain and suspension-equipment requirements stated above. A trim name alone does not establish compatibility with every factory suspension option.

Year Make Model Trim
2012-2013 Audi A7 Quattro Base
2014-2016,2018 Audi A7 Quattro Premium Plus
2015-2016,2018 Audi A7 Quattro Prestige
2014-2016 Audi A7 Quattro TDI Premium Plus
2014-2016 Audi A7 Quattro TDI Prestige
