Description

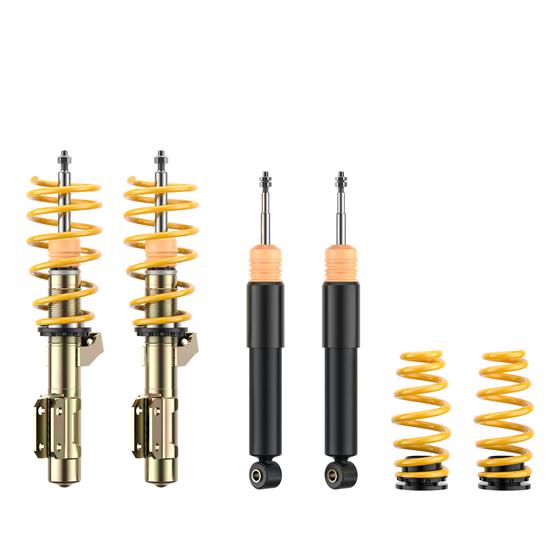

The ST Suspensions XA Coilover Kit for 1996-2002 BMW Z3 Coupe/Roadster (Non-M) combines adjustable ride height with adjustable rebound damping. It adds a useful setup function for an owner who wants to tune suspension response as well as stance.
Adjustment and construction
- Application-specific spring-and-damper suspension package.
- Threaded ride-height adjustment within the permitted application range.
- Galvanized steel damper housings and protective damper sealing.
- Adjustable rebound damping with a manufacturer-specified starting setup.
- Composite spring adjustment perches with stainless steel inserts.
What the adjustment means
Rebound damping controls resistance as the suspension extends after compression. Its adjustment changes extension control; it does not change the spring rate. Begin with the supplied baseline and make small changes, because excessive rebound resistance can impair recovery over repeated bumps.
Technical specifications
| Specification | Detail |
|---|---|
| Product | ST XA coilover kit |
| Catalog SKU | STS18220016 |
| Manufacturer part number | 18220016 |
| Ride-height adjustment | Yes, within the application-specific permitted range |
| Damping adjustment | Rebound adjustable |
Lowering range
| Axle | Nominal lowering |
|---|---|
| Front | 35-70mm (approximately 1.4-2.8in) |
| Rear | 30-60mm (approximately 1.2-2.4in) |
These are application-specific lowering figures relative to the original suspension reference height. Factory-lowered vehicles may see a smaller additional reduction. Set the vehicle within the permitted installation dimensions and check available suspension travel and wheel clearance; the lowest setting is not automatically the best driving setup.
Application and installation considerations
The stated trim exclusions are part of the application. Confirm the exact model and equipment rather than choosing by chassis family alone.
Set ride height with usable suspension travel and wheel clearance in mind. Follow the supplied fitting procedure, check clearance through steering and suspension movement, and have the alignment checked after installation or a meaningful height change. Retained mounts and supporting suspension parts should be inspected before fitting.
Application requirements
- Non-M
Vehicle applications
Match the model, year and trim below together with the body style, drivetrain and suspension-equipment requirements stated above. A trim name alone does not establish compatibility with every factory suspension option.
| Year | Make | Model | Trim |
|---|---|---|---|
| 1999-2002 | BMW | Z3 | Coupe |
| 1996-2002 | BMW | Z3 | Roadster |
