Description
Fits
- Volkswagen Passat (3BG-B5.5) Sedan, Wagon 4motion
Recommended when you want: Height adjustment plus control over rebound damping so ride and chassis response can be fine-tuned.
Product Features
- Seamless application-specific ride-height adjustment

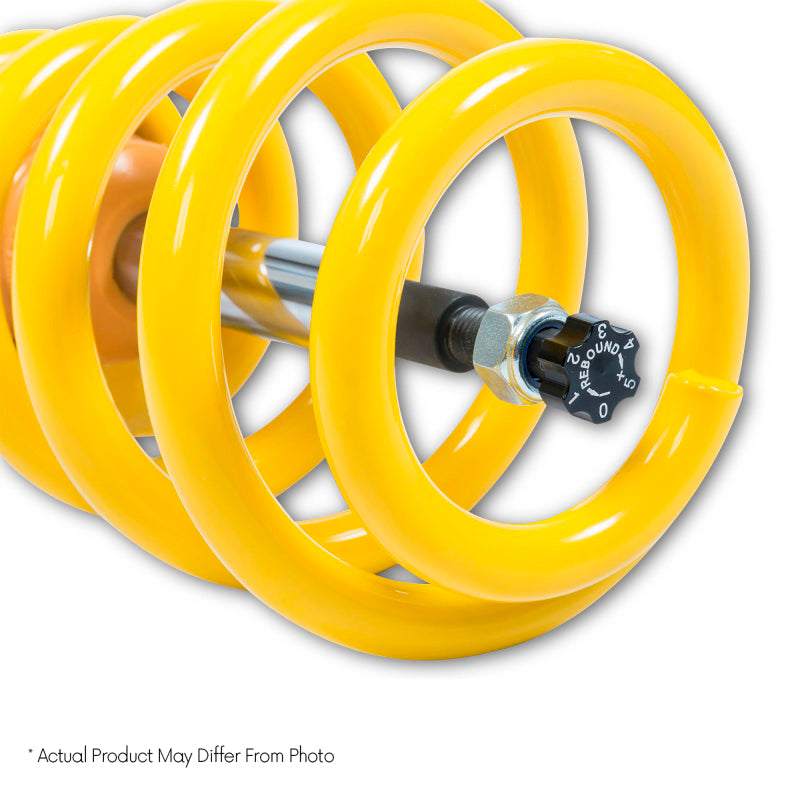

- 16-click adjustable rebound damping
- Factory-recommended damper setting provides a repeatable baseline

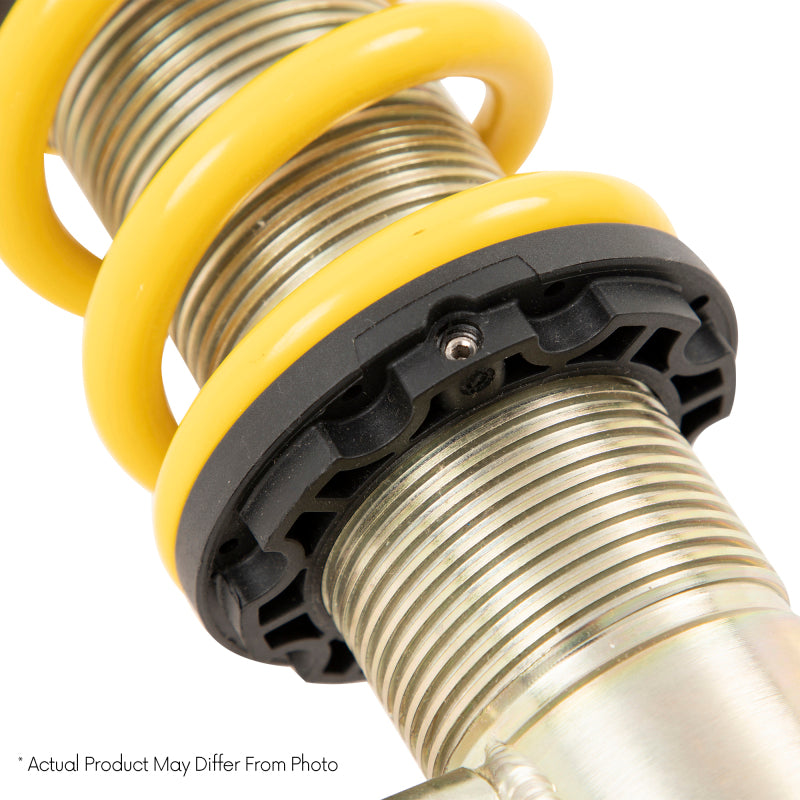

- Composite spring perch and galvanized steel strut construction
Application Specifications
| Ride-height range | Front: 30-70 mm / Rear: 40-70 mm |
| Spring rates | Front: 580 lb/in / Rear: P lb/in |
Additional Fitment Notes
- Excludes models with the automatic level control and/or the automatic level system that can be adjusted in accordance.
- Because of the construction of the car the damping adjustment can only made when the damper is not mounted. By modifying the interior trim this problem can be avoided.
Compare ST Coilover Families
| System | Height | Rebound | Compression | Top Mounts |
|---|---|---|---|---|
| ST X | Yes | Fixed | — | — |
| ST XA | Yes | 16-click rebound | — | — |
| ST XTA | Yes | 16-click rebound | — | Top mounts* |
| ST XTA Plus 3 | Yes | 16-click rebound | 24-click high + low speed | Top mounts* |
*Top-mount design and adjustability are application-dependent. Confirm the exact kit contents for your vehicle.
ST Part Number: 18280017
