Description
Fits
- 1998–2005 Volkswagen Passat (3B-B5) Sedan, Wagon / Passat (3B-B5.5) Sedan, Wagon
Recommended when you want: Height adjustment with a complete ST spring-and-damper package and no damping adjustments to manage.
Product Features
- Seamless application-specific ride-height adjustment
- Fixed damping calibrated for the application

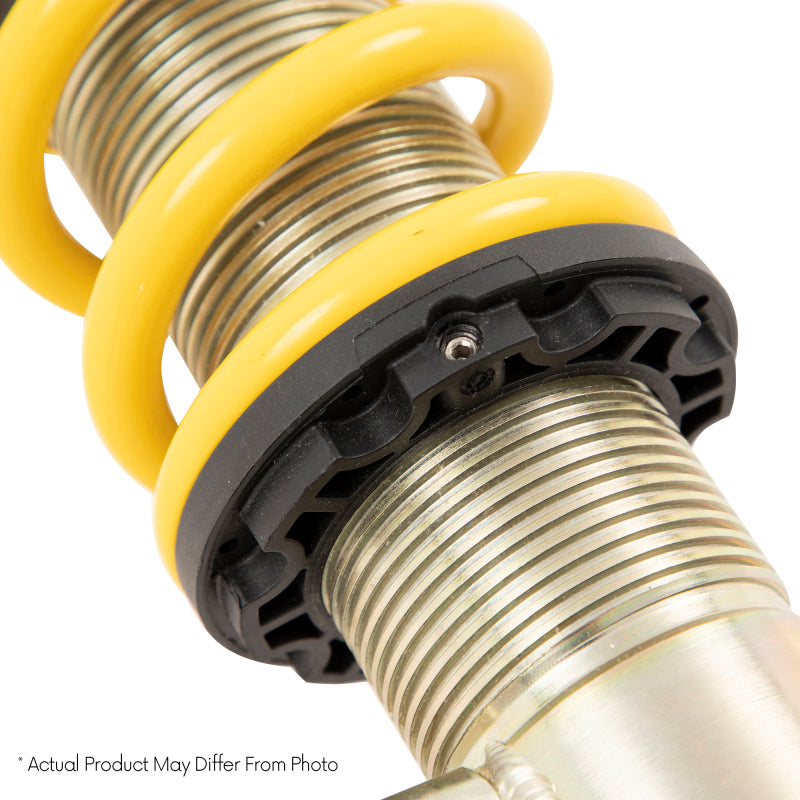

- Composite spring perch designed to maintain smooth height adjustment
- Galvanized steel strut construction with dust and sealing protection
Application Specifications
| Ride-height range | Front: 30-70 mm / Rear: 40-70 mm |
| Spring rates | Front: 580 lb/in / Rear: P lb/in |
Additional Fitment Notes
- Excluding all models with 4 wheel drive
- Height adjustment at the rear axle over special bushes
- Because of the construction of the car the damping adjustment can only made when the damper is not mounted. By modifying the interior trim this problem can be avoided.
Compare ST Coilover Families
| System | Height | Rebound | Compression | Top Mounts |
|---|---|---|---|---|
| ST X | Yes | Fixed | — | — |
| ST XA | Yes | 16-click rebound | — | — |
| ST XTA | Yes | 16-click rebound | — | Top mounts* |
| ST XTA Plus 3 | Yes | 16-click rebound | 24-click high + low speed | Top mounts* |
*Top-mount design and adjustability are application-dependent. Confirm the exact kit contents for your vehicle.
ST Part Number: 13280011
