Description

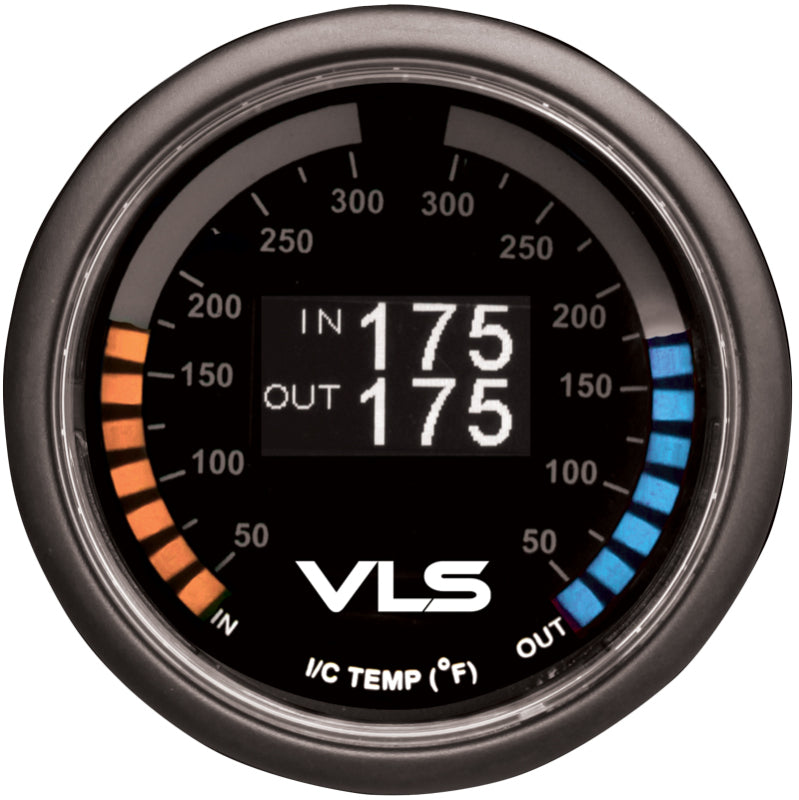

Monitor air temperature before and after the intercooler with the REVEL VLS 52mm intercooler dual temperature gauge. Its OLED numeric display provides a clear reading of both channels, while the outer LED indicators provide an additional visual reference.
Technical Specifications
| Gauge diameter | 52mm |
|---|---|
| Measurement range | 50–300°F per channel |
| Display | Digital OLED |
| Outer indicator | 14 LEDs per side |
| Included sensor | two air temperature sensors |
| Sensor thread | 3/8 NPT |
| Manufacturer part number | 1TR1AA006R |

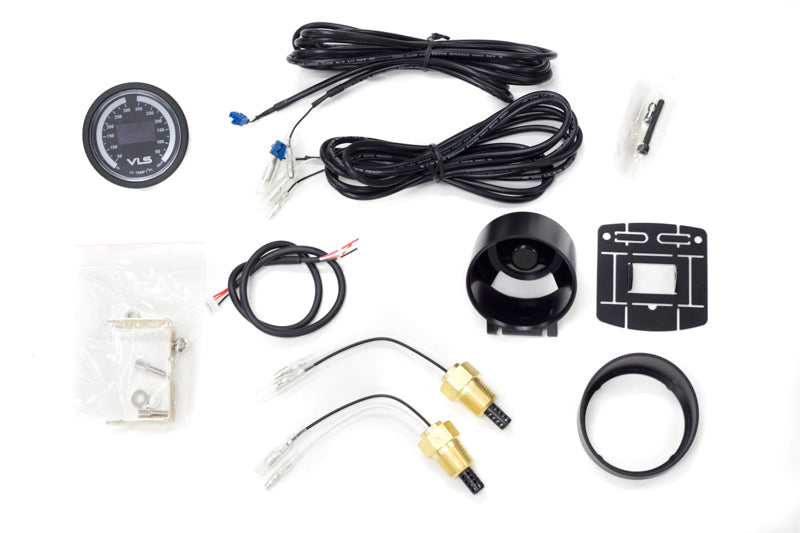

Included Components
- Gauge, power harness, mounting pod, hood and mounting hardware
- Two air temperature sensors and associated wiring
System Compatibility
This gauge does not support the VLS OLED daisy-chain connection system. Plan its wiring independently of the compatible boost, temperature, oil-pressure and voltage gauge chain.
Installation Considerations
Install one sensor before the intercooler and the other after it to compare inlet and outlet air temperatures. Required 3/8 NPT weld-in bungs are not included.
