Description

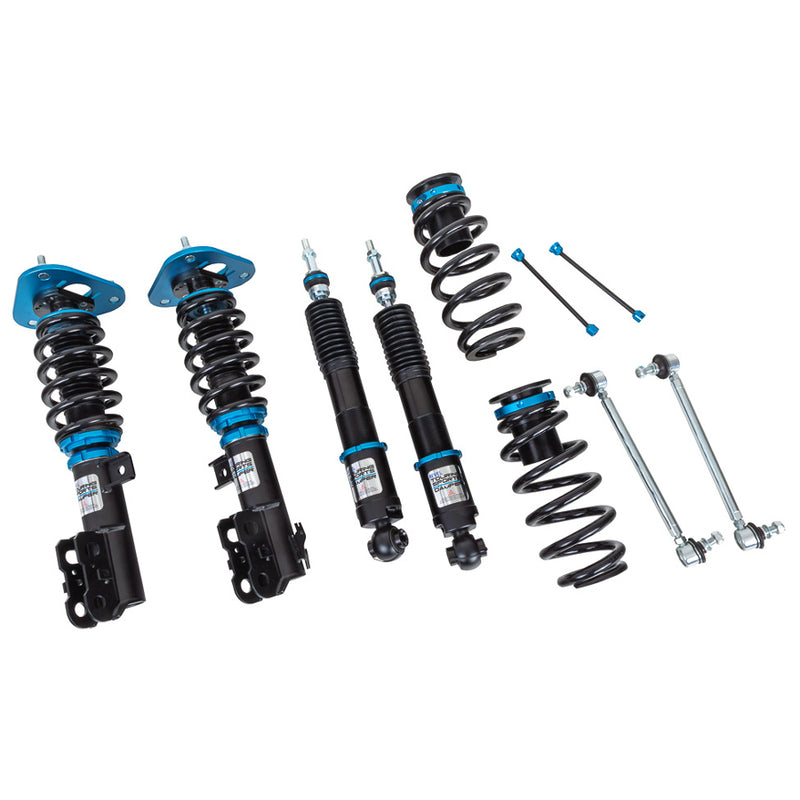

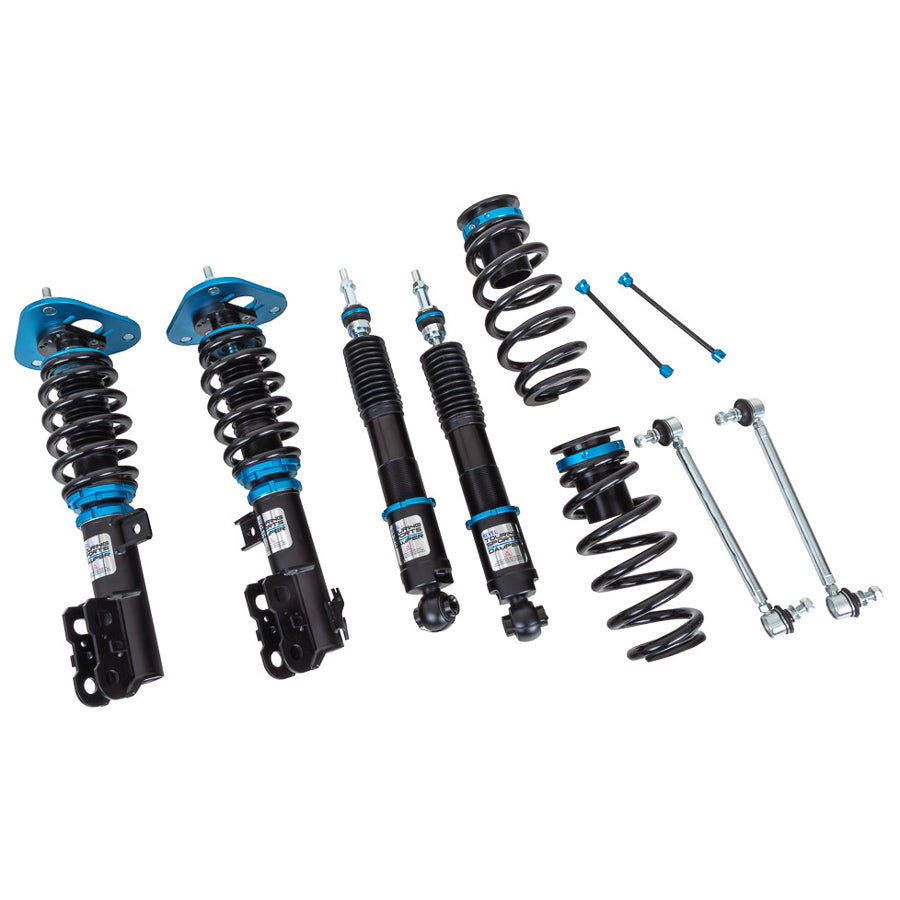

The REVEL Touring Sport Damper coilover system for 2023 Toyota GR Corolla combines adjustable ride height with 32-position damping adjustment. Its monotube dampers provide an adjustable suspension package for setting up the vehicle around your preferred ride height and driving conditions.
Technical Specifications
| Application | 2023 Toyota GR Corolla |
|---|---|
| Front spring rate | 7 kg/mm |
| Rear spring rate | 8 kg/mm |
| Damping adjustment | 32 positions |
| Damper construction | Monotube |
| Preload adjustment | Independent |
| Manufacturer part number | 1TR3CDTY009 |
Adjustment and Setup
Damping adjustment changes resistance to suspension movement; it does not change spring stiffness. Ride quality and handling also depend on suspension geometry, tires, alignment and available travel. Set ride height and preload before checking clearance and arranging a final alignment.
Included Protection
Zippered neoprene coilover covers help shield the springs, shock shafts and seals from dirt and debris. The zippered design allows the covers to be fitted without removing the assemblies.
Installation Considerations
Match the exact model, drivetrain and original suspension configuration before ordering. Existing suspension modifications can affect installation and clearance.
