Description

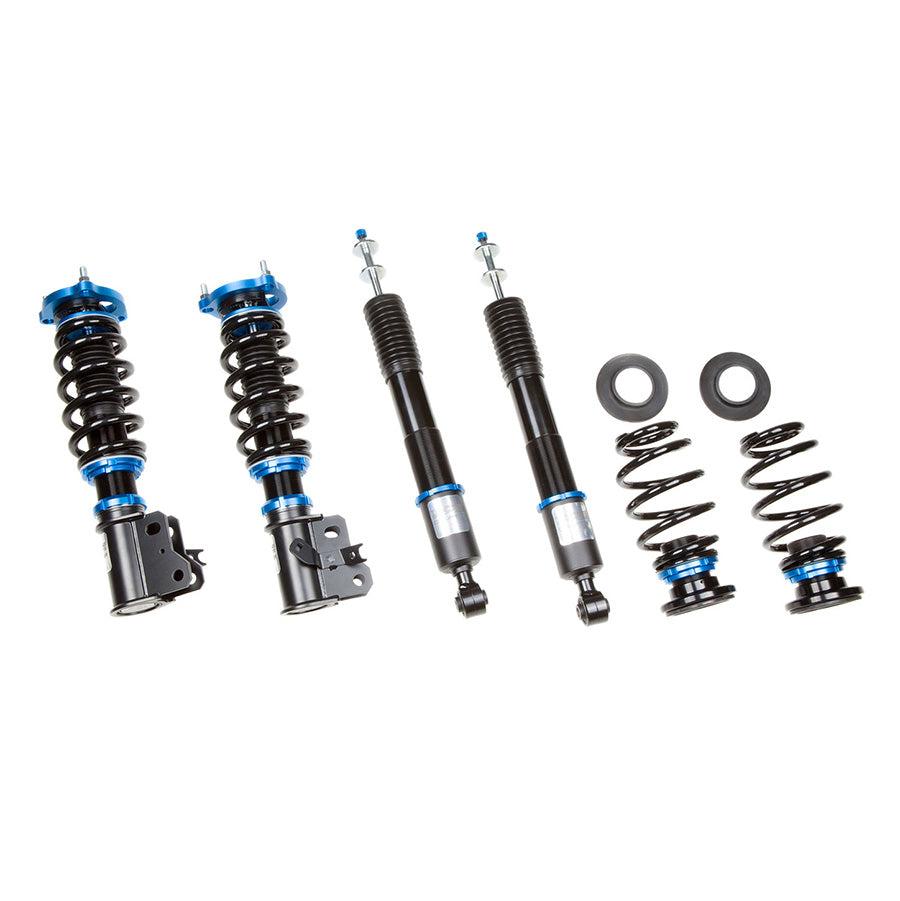

The REVEL Touring Sport Damper coilover system for 2006–2011 Honda Civic combines adjustable ride height with 32-position damping adjustment. Its monotube dampers provide an adjustable suspension package for setting up the vehicle around your preferred ride height and driving conditions.
Technical Specifications
| Application | 2006–2011 Honda Civic |
|---|---|
| Front spring rate | 8 kg/mm |
| Rear spring rate | 5.5 kg/mm |
| Damping adjustment | 32 positions |
| Damper construction | Monotube |
| Preload adjustment | Independent |
| Front upper mount | Pillowball upper mount with camber adjustment included; radial bearing included |
| Rear upper mount / layout | Upper mount not included |
| Manufacturer part number | 1TR3CDHN004 |
Adjustment and Setup
Damping adjustment changes resistance to suspension movement; it does not change spring stiffness. Ride quality and handling also depend on suspension geometry, tires, alignment and available travel. Set ride height and preload before checking clearance and arranging a final alignment.
Included Protection
Zippered neoprene coilover covers help shield the springs, shock shafts and seals from dirt and debris. The zippered design allows the covers to be fitted without removing the assemblies.
Vehicle Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006-2011 | Honda | Civic | DX |
| 2006-2011 | Honda | Civic | EX |
| 2009-2011 | Honda | Civic | EX-L |
| 2006-2011 | Honda | Civic | GX |
| 2006-2011 | Honda | Civic | Hybrid |
| 2009-2011 | Honda | Civic | Hybrid-L |
| 2006-2011 | Honda | Civic | LX |
| 2009-2011 | Honda | Civic | LX-S |
| 2008 | Honda | Civic | MUGEN Si |
| 2006-2011 | Honda | Civic | Si |
Installation Considerations
Match the exact model, drivetrain and original suspension configuration before ordering. Existing suspension modifications can affect installation and clearance. Upper mounts are not included at the positions listed above; arrange the correct application-specific mounts before installation.
