Description

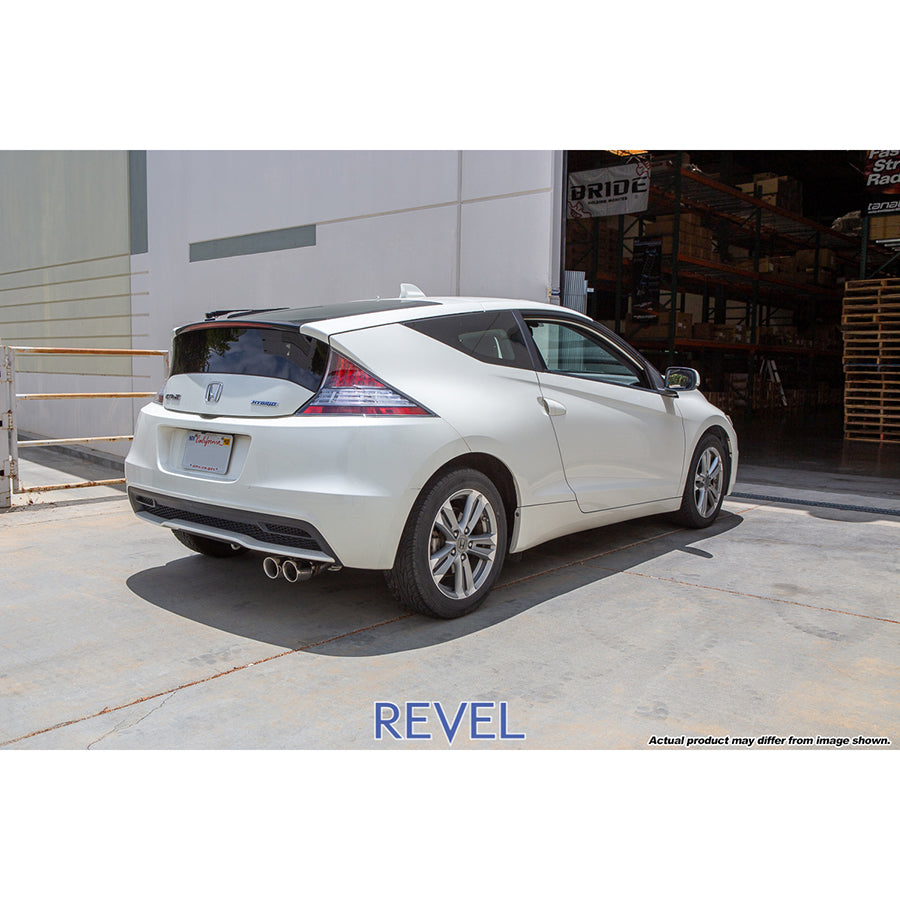

REVEL Medallion Touring-S for 2011–2016 Honda CR-Z combines stainless steel construction with a deep, low exhaust character. Match the system section and outlet configuration to your vehicle and existing exhaust components.
Technical Specifications
| Application | 2011–2016 Honda CR-Z |
|---|---|
| System type | Axle-back exhaust |
| Configuration | Dual Tip |
| Material | SUS304 stainless steel |
| Pipe diameter specification | 50 mm |
| Tip diameter | 50 mm |
| Piping wall thickness | 1.5mm |
| Manufacturer part number | T70155AR |
Construction Details
SUS304 stainless steel provides corrosion resistance. Mandrel-bent tubing maintains pipe geometry through bends, while hand TIG-welded joints and laser-cut flanges form the assembly connections.
Installation Considerations
Confirm model year, engine, drivetrain and body configuration before ordering. Existing aftermarket exhaust parts can affect connections and clearance. Final sound depends on the complete vehicle setup.
