Description

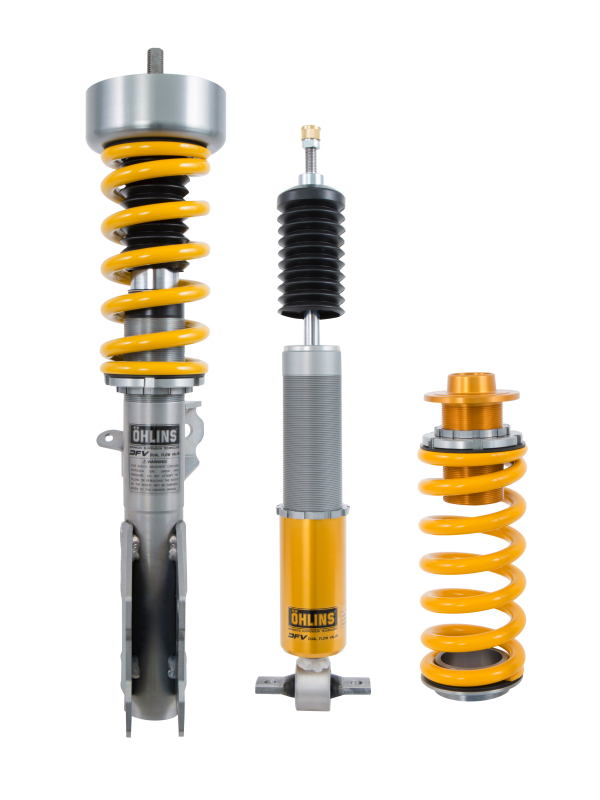

Öhlins Road & Track Coilovers – Ford Mustang (S550) is an application-specific Öhlins Road & Track suspension package for the Ford Mustang (S550) Passive Shock Models. Built around Öhlins DFV damping, this system is aimed at enthusiasts who want sharper chassis response and more usable damping control while retaining the compliance needed for a dual-purpose street and track car. The spring and ride-height specification below is matched to this application rather than treated as a universal coilover setup.
Vehicle Fitment
- 2015-2023 Ford Mustang (S550) Passive Shock Models
Key Details
- DFV (Dual Flow Valve) damper technology
- Application-specific spring and damper specification
- Adjustable damping for street and track setup changes
- Ride-height tuning where specified by Öhlins
- Rebuildable, serviceable performance dampers
Technical Specifications
| Öhlins Part Number | FOS MR00S1 |
| Product Line | Road & Track |
| Recommended Use | Street / Canyon / HPDE |
| Technology | DFV |
| Additional Height Adjustment | Yes |
| Front Spring Rate | 90 N/mm |
| Rear Spring Rate | 140 N/mm |
| Front Spring Part Number | 48000-27 |
| Rear Spring Part Number | 48000-47 |
| Country of Origin | Japan |
Important Fitment Notes
- Incorporates original OE upper mounts.
- S550 Mustangs with adaptive shocks require fitment of FR3Z-5500-M and FR3Z-5500-L rear lower contorl arms from the passive shock models due the the spring bucket design change in the cast aluminum arm.
Fitment note: Vehicle equipment can vary by model year and trim. Confirm chassis, factory electronic suspension options and Öhlins part number before ordering.
