Description

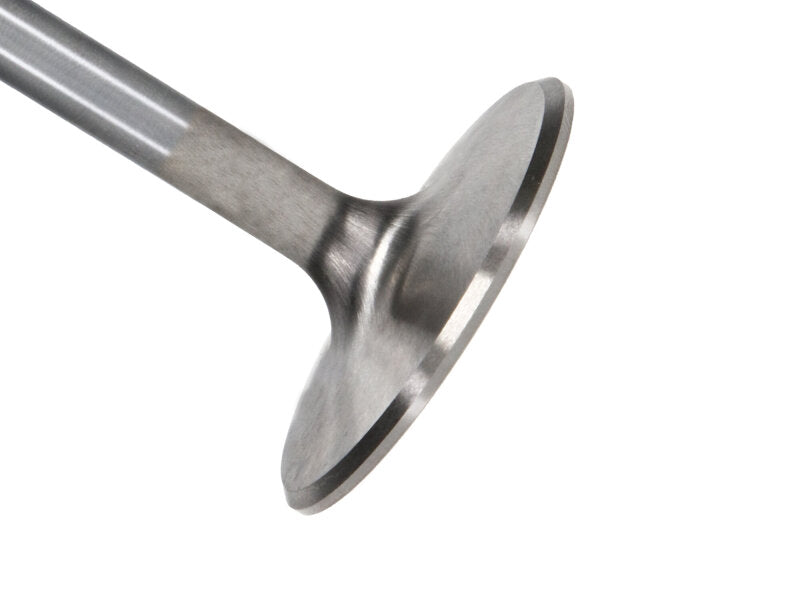

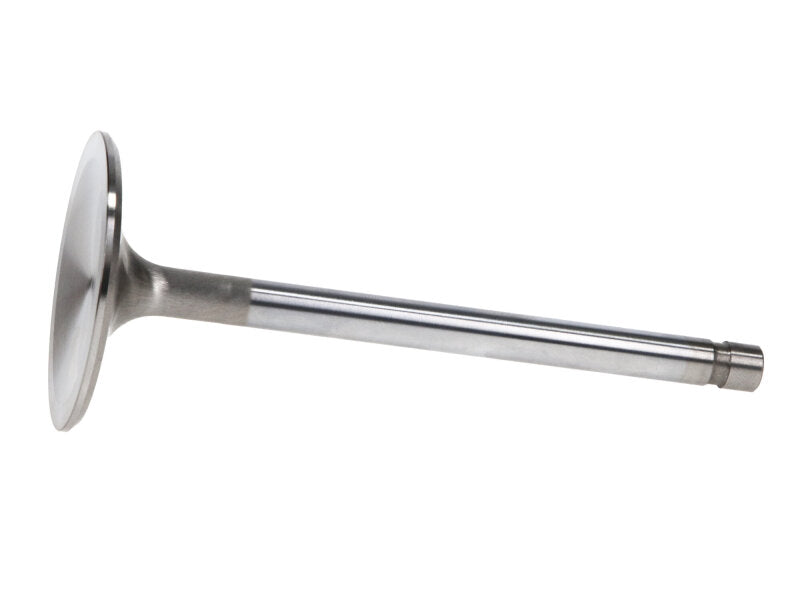

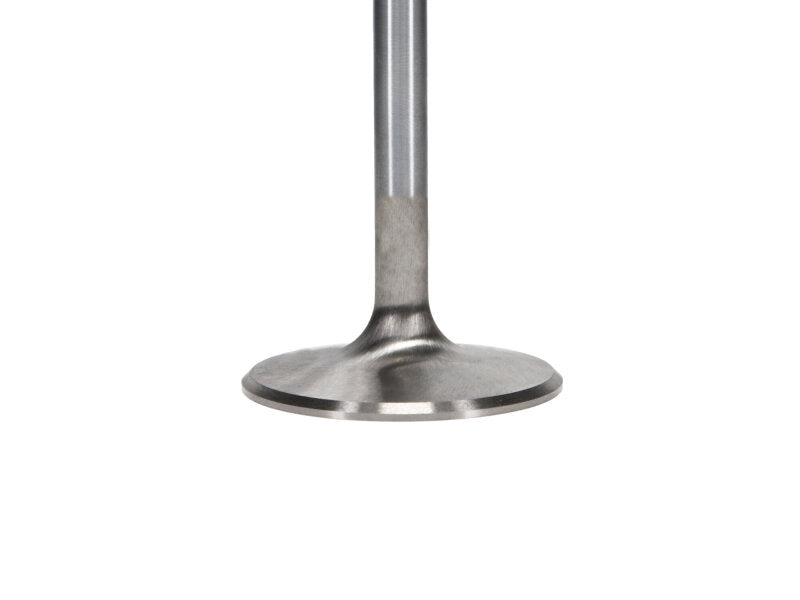

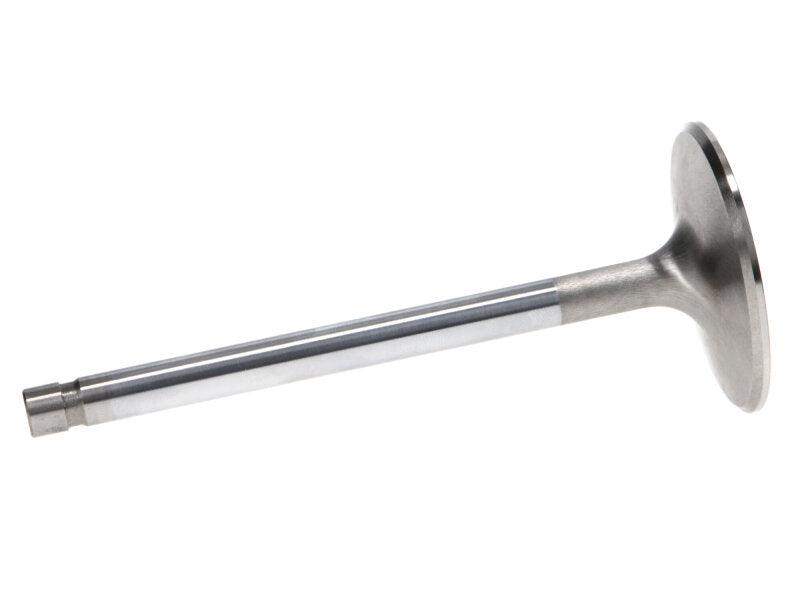

This Manley Severe Duty intake valve family is intended for Ford 429 builds where valve dimensions need to be matched deliberately to the cylinder head, seat work, and valvetrain geometry. The selectable configurations in this family are separated by head diameter, overall length, stem diameter, so the final SKU should be chosen from the dimensional requirements of the build.
For Ford 429, valve diameter changes can alter seat work and chamber/shrouding relationships, while alternate overall lengths can change installed height and rocker geometry.
Key Product Details
- Application: Ford 429
- Manley Series: Severe Duty
- Valve Position: Intake
- Product Family Detail: Severe Duty application focus
- Manufacturer Part Numbers: Vary by selected configuration (3 SKUs in this parent family)
Available Configurations
This parent listing contains multiple selectable Manley SKUs. Choose the configuration that matches the measured engine or cylinder-head specification.
- Head Diameter: 2.250in, 2.300in
- Overall Length: 5.244in, 5.725in
- Stem Diameter: 0.3415in
Package Quantity
Set of 8 valves. The selected configuration is supplied as a 8-piece valve package. This quantity applies to the selected Manley SKU family shown on this product page.
Selection & Fitment Notes
Use the finished cylinder-head setup as the authority for selection. Oversize valves or alternate lengths may require machining and can affect installed height and valvetrain geometry.
Professional engine assembly and measurement are recommended. Product specifications should be confirmed against the selected Manley part number and the requirements of the exact engine build.
