Description

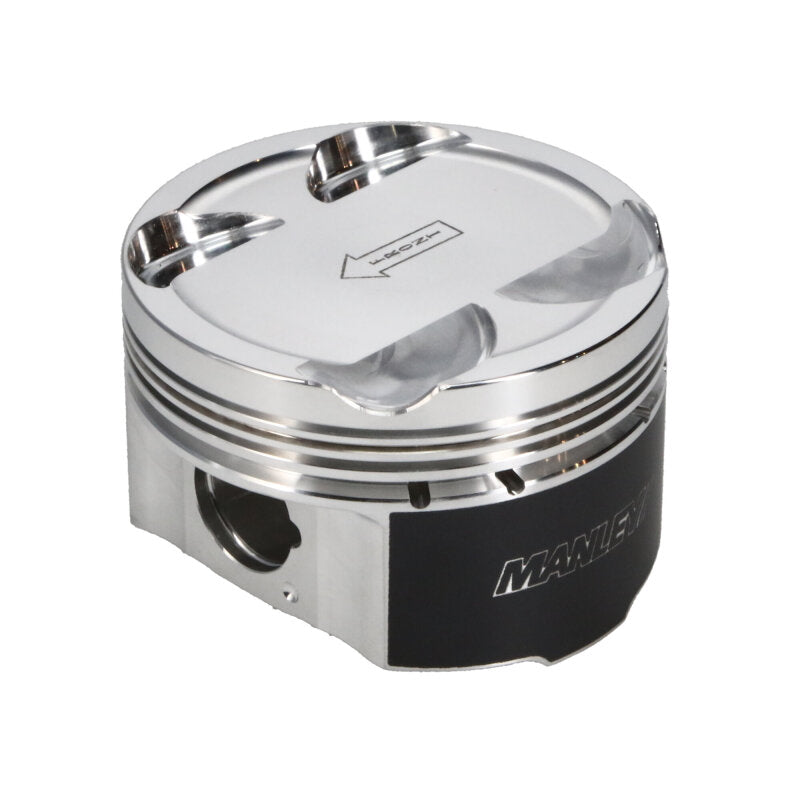

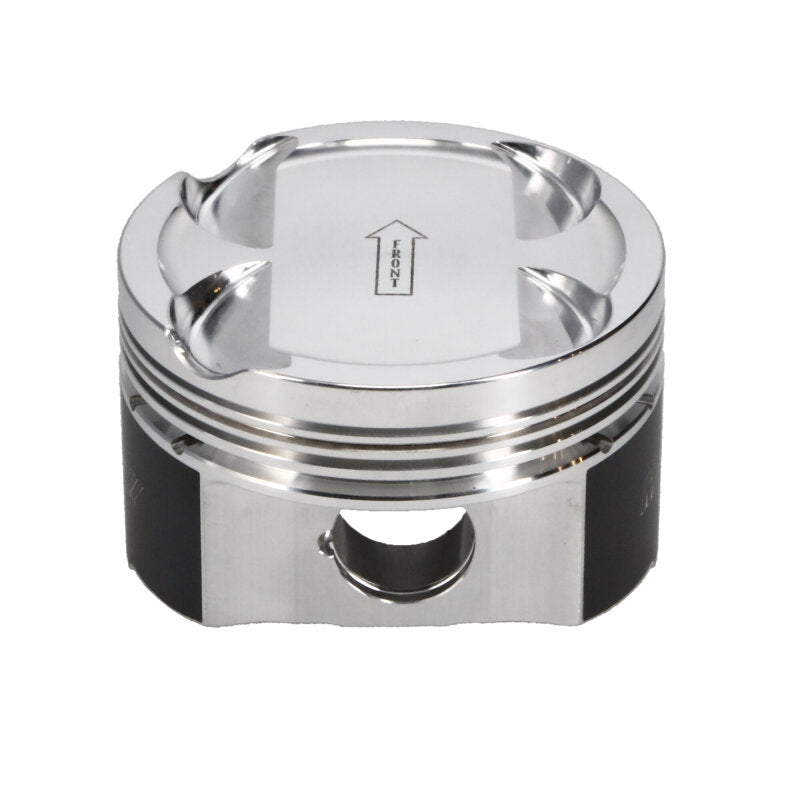

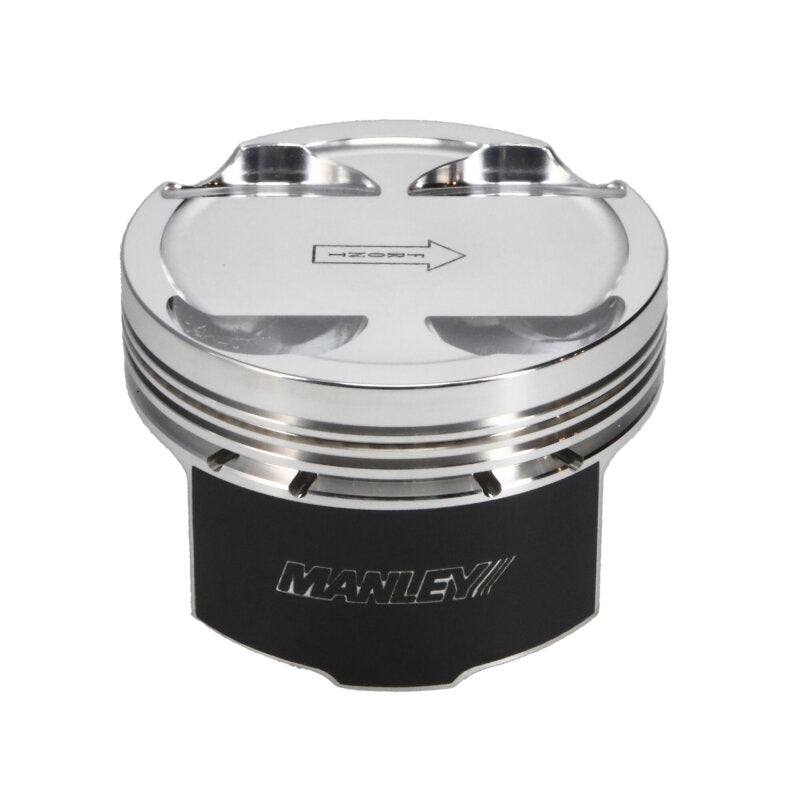

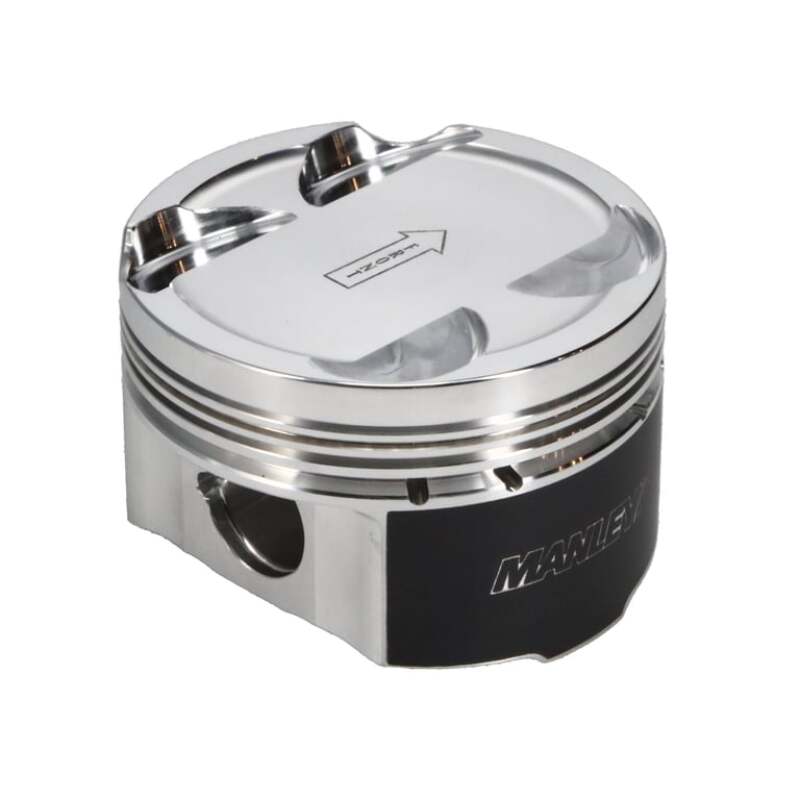

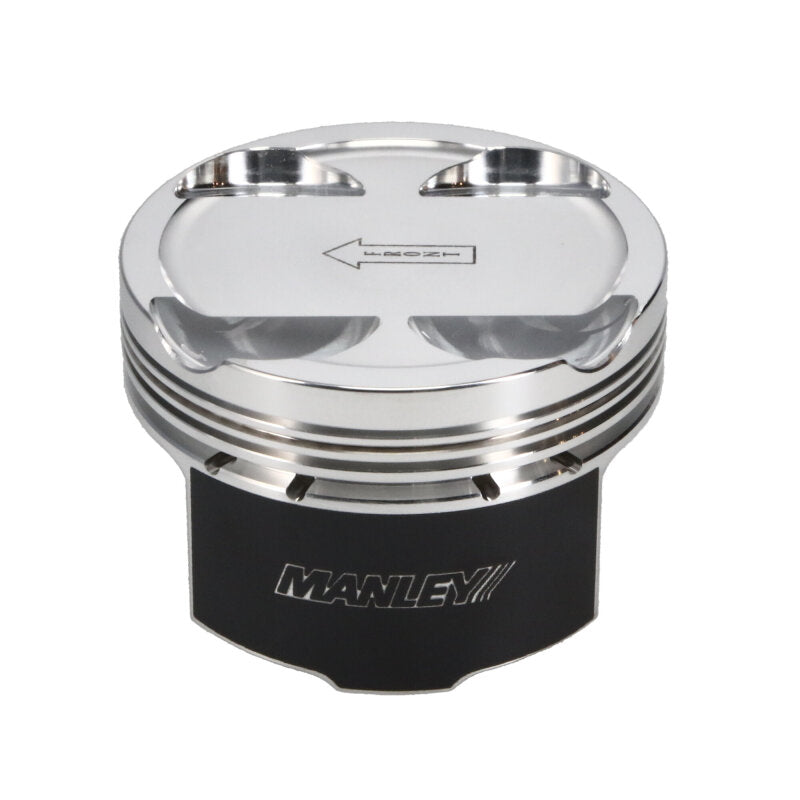

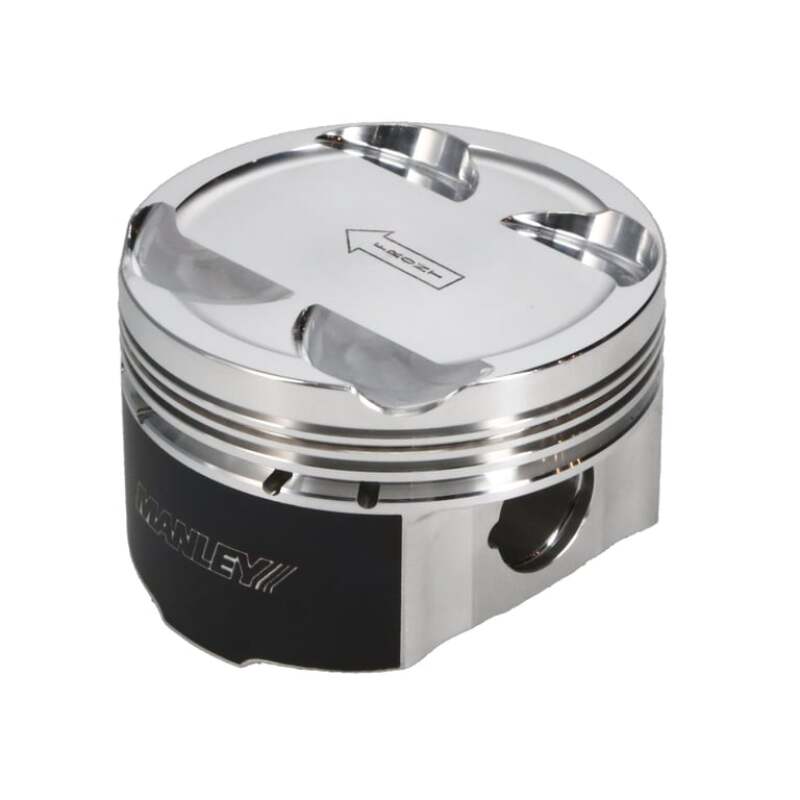

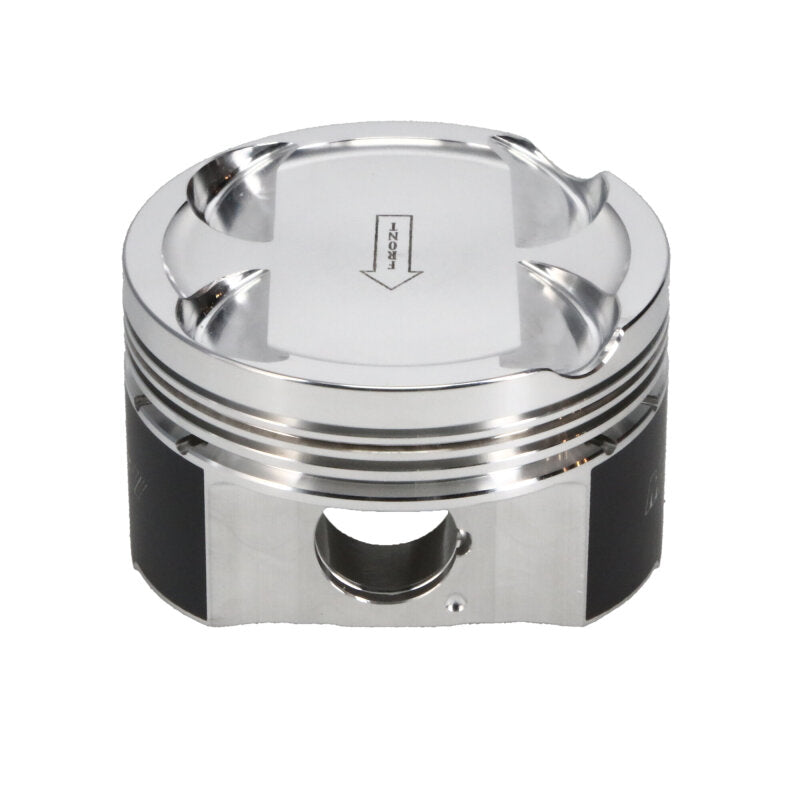

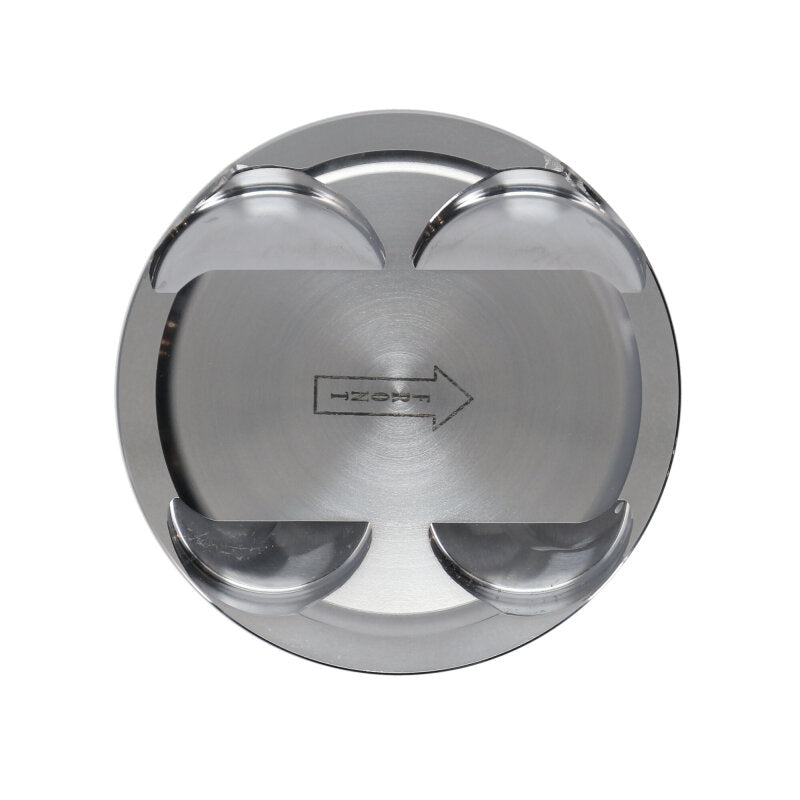

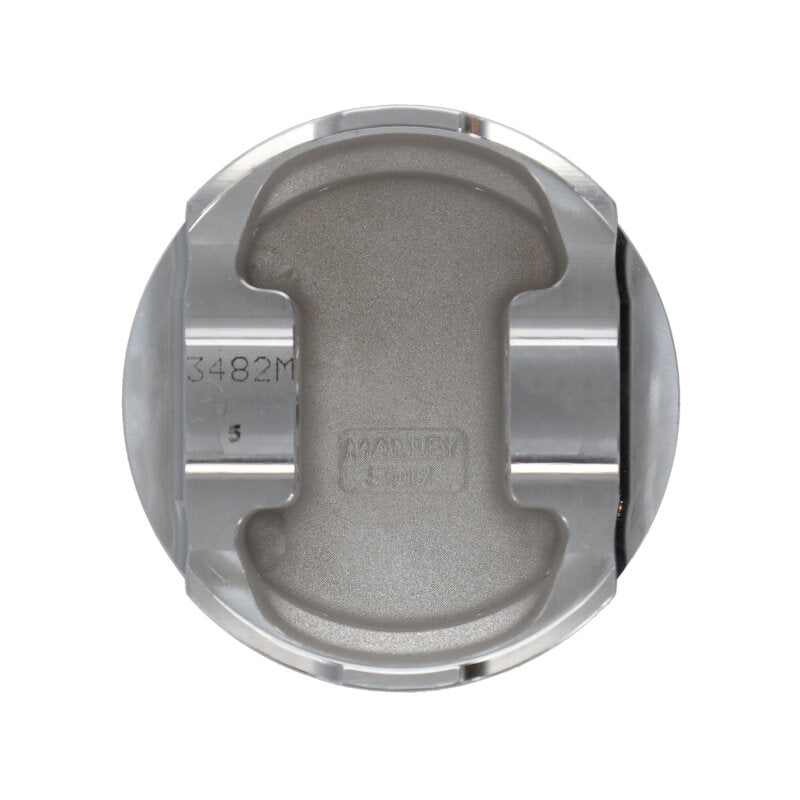

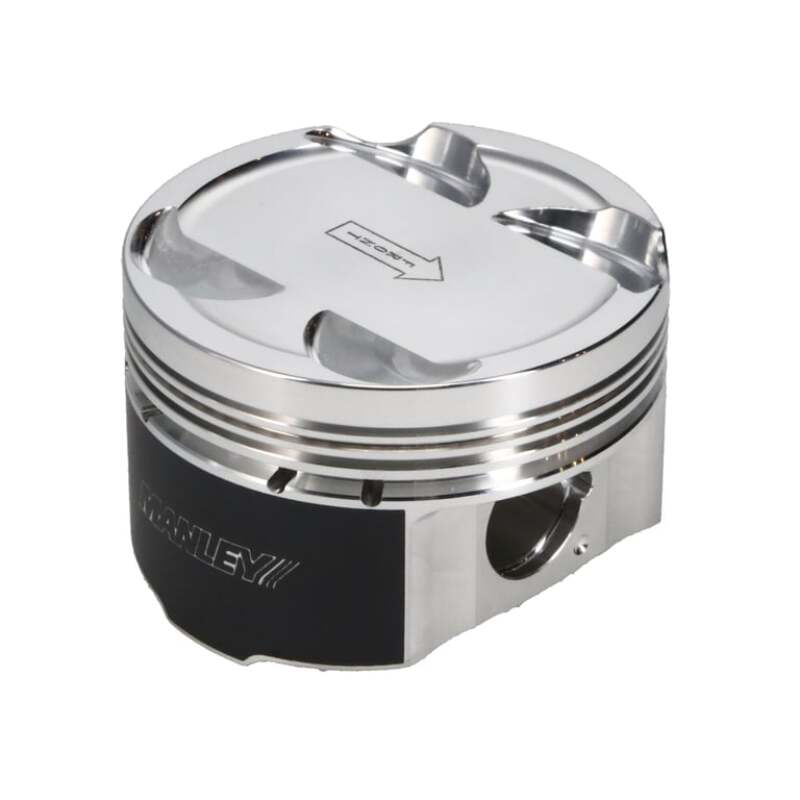

Manley developed this Platinum Series piston configuration for 1993-1998 Toyota Supra Turbo (2JZ - GTE) 86.5mm +.5mm Oversized Bore 8.5:1 CR; use the listed bore and compression details to match the piston to the finished cylinder and intended rotating assembly. The parent listing is distinguished by 8.5:1, which should be cross-checked against the rest of the engine combination.
Because this is a 1993-1998 Toyota Supra Turbo (2JZ - GTE) 86.5mm +.5mm Oversized Bore 8.5:1 CR piston family, final fitment depends on the machine shop’s finished cylinder measurement and the intended rod/stroke combination—not simply on nominal engine displacement.
Key Product Details
- Application: 1993-1998 Toyota Supra Turbo (2JZ - GTE) 86.5mm +.5mm Oversized Bore 8.5:1 CR
- Manley Series: Platinum Series
- Title Specification: 8.5:1
- Product Family Detail: 2618-alloy forged piston construction
- Product Family Detail: tool-steel wrist-pin hardware on applicable part numbers
- Product Family Detail: moly skirt coating on applicable part numbers
- Manufacturer Part Number: 609005C-1
Package Quantity
Sold individually. This listing supplies one piston per selected SKU; order the quantity required for your engine and verify that all pistons match the machine shop’s bore/grade plan. This quantity applies to the selected Manley SKU family shown on this product page.
Selection & Fitment Notes
Machine-shop measurements should determine the final piston selection. Check bore class/grade, compression geometry, ring package, pin dimensions, and intended rod/stroke combination.
Professional engine assembly and measurement are recommended. Product specifications should be confirmed against the selected Manley part number and the requirements of the exact engine build.
